XG8W-2031 - OMRON Electronics

XG8W-2031 Details

• Manufacturer Part Number:

  XG8W-2031

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  OMRON Electronic Components

• YTEOL:

  9.1

• Body Breadth:

  0.197 inch

• Body Depth:

  0.098 inch

• Body Length:

  1 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (6) OVER NICKEL

• Contact Finish Termination:

  TIN

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  650VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

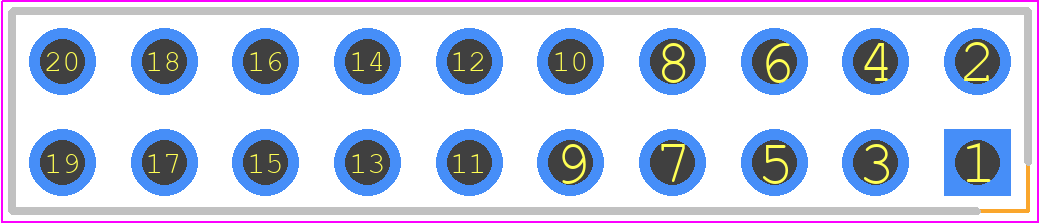

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  6u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.118 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
