Omron recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
To ensure reliable communication, use a shielded cable, and implement proper grounding and shielding techniques. Also, consider using a noise filter or common-mode choke to reduce electromagnetic interference (EMI). Additionally, implement error-checking and correction mechanisms in your communication protocol.
The maximum cable length for the XG8W-2631's communication interface depends on the specific interface used (e.g., RS-232, RS-485, or Ethernet). As a general guideline, Omron recommends keeping cable lengths under 10 meters for RS-232, 100 meters for RS-485, and 100 meters for Ethernet. However, the actual maximum cable length may vary depending on the specific application and environment.
To troubleshoot communication issues, first, verify that the device is properly powered and configured. Check the communication interface settings, such as baud rate, parity, and stop bits. Use a logic analyzer or oscilloscope to inspect the signal quality and timing. Also, consult Omron's documentation and application notes for specific troubleshooting guidelines.
The XG8W-2631 is designed to operate in a temperature range of -20°C to 70°C, with a relative humidity of 5% to 95%. It can withstand vibrations up to 10 G and shocks up to 15 G. However, it's essential to consult the datasheet and Omron's documentation for specific environmental and operating conditions, as well as any applicable safety standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XG8W-2631 Overview

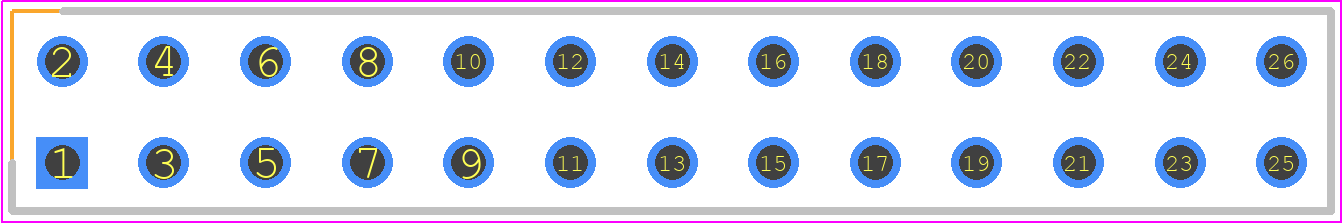

Use the download button to access the XG8W-2631 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XG8W-,
or try a keyword search, such as Headers and Edge Type Connectors
