XH3A-2041-2A - OMRON Electronics

Description: 20 Position Connector Plug, Center Strip Contacts Through Hole Gold

Download XH3A-2041-2A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

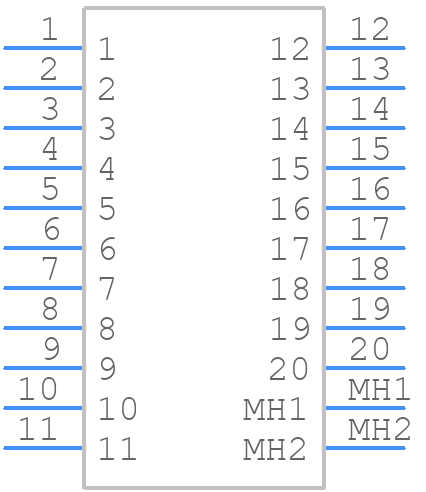

XH3A-2041-2A - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints

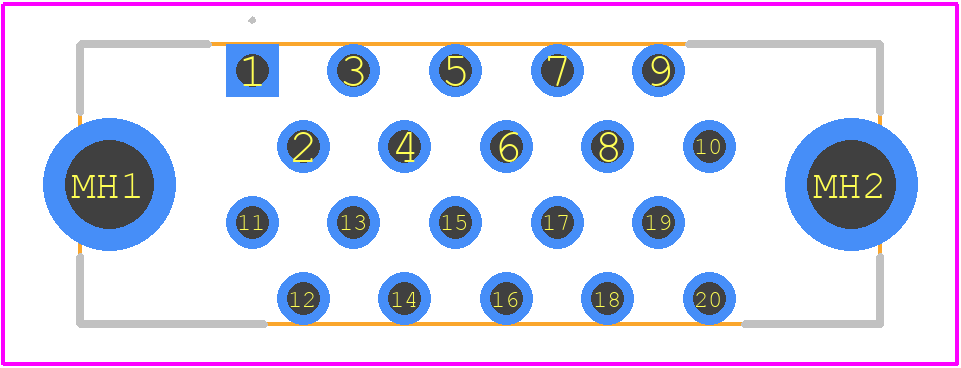

XH3A-2041-2A - OMRON Electronics PCB footprint - Other - Other - XH3A-2041-2A-1
click to zoom
3D Models
XH3A-2041-2A - OMRON Electronics - 3D model - Other - XH3A-2041-2A-1
click to zoom

XH3A-2041-2A Details

  • Manufacturer Part Number:

    XH3A-2041-2A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Dielectric Withstanding Voltage:

    650VAC V

  • Durability:

    400 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    .7784 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • Withdrawl Force-Min:

    .10008 N

XH3A-2041-2A Frequently Asked Questions (FAQs)

  • Omron provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • The XH3A-2041-2A has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Omron provides thermal management guidelines in their application notes.
  • The maximum operating temperature range for the XH3A-2041-2A is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet and application notes for more information.
  • The XH3A-2041-2A is designed to withstand moderate vibrations, but it's essential to ensure that the device is properly mounted and secured to the PCB to prevent damage. Omron provides guidelines for vibration testing and mounting in their application notes.
  • Omron provides troubleshooting guides and application notes that can help identify and resolve common issues with the XH3A-2041-2A. It's also recommended to consult with Omron's technical support team or a qualified engineer for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XH3A-2041-2A Overview

Use the download button to access the XH3A-2041-2A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XH3A-, or try a keyword search, such as Headers and Edge Type Connectors
