XIO1100ZWS - Texas Instruments

XIO1100ZWS Details

• Manufacturer Part Number:

  XIO1100ZWS

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

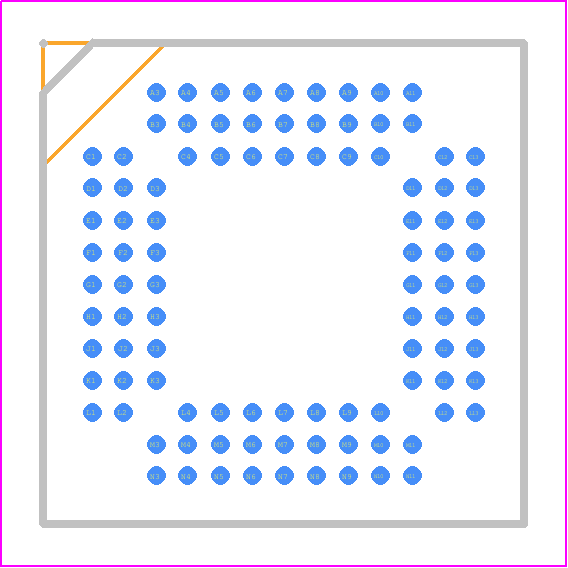

• Package Description:

  BGA-100

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  125 MHz

• Data Transfer Rate-Max:

  312.5 MBps

• JESD-30 Code:

  S-PBGA-B100

• JESD-609 Code:

  e1

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  100

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA100,13X13,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.4 mm

• Supply Voltage-Max:

  1.65 V

• Supply Voltage-Min:

  1.35 V

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, PCI
