XIO3130INMH - Texas Instruments

Description: PCI Interface IC Integrated PCI Express® (PCIe) 1:3 4-port 4-lane packet switch 196-NFBGA -40 to 85

Download XIO3130INMH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XIO3130INMH - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

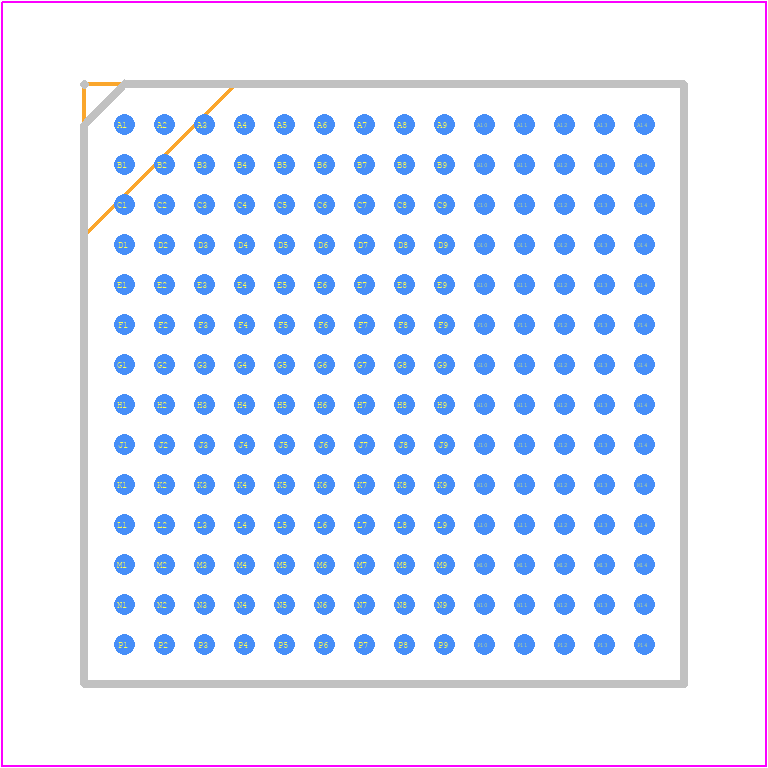

XIO3130INMH - Texas Instruments PCB footprint - BGA - BGA - NMH0196A
click to zoom
3D Models
XIO3130INMH - Texas Instruments - 3D model - BGA - NMH0196A
click to zoom

XIO3130INMH Details

  • Manufacturer Part Number:

    XIO3130INMH

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bus Compatibility:

    PCI

  • Clock Frequency-Max:

    100 MHz

  • Data Transfer Rate-Max:

    250 MBps

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.65 V

  • Supply Voltage-Min:

    1.35 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

XIO3130INMH Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a thermal pad or thermal interface material to improve heat dissipation. Ensure good airflow and avoid blocking airflow around the device. Follow the recommended thermal design guidelines in the datasheet.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use a common-mode choke or ferrite bead on the input lines. Follow the recommended EMI and RFI mitigation guidelines in the datasheet.
  • Use the recommended input filter topology and component values provided in the datasheet. Adjust the filter components based on your specific input voltage, frequency, and noise requirements.
  • The device can operate with input voltages between 2.7V and 5.5V, but the output voltage and current capabilities may be affected. Consult the datasheet for specific performance characteristics at different input voltages.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XIO3130INMH Overview

Use the download button to access the XIO3130INMH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XIO31, or try a keyword search, such as Bus Controllers
