TI recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Also, keep the input and output traces short and away from each other to minimize noise and crosstalk.
Use the built-in noise filtering and error detection features, such as the watchdog timer and cyclic redundancy check (CRC). Additionally, implement proper shielding, grounding, and decoupling on the PCB, and consider using isolation transformers or common-mode chokes.
The maximum cable length depends on the specific application and environment. However, as a general guideline, TI recommends keeping the cable length below 100 meters for reliable operation. Longer cables may require additional signal conditioning or repeaters.
Yes, the XISO1042DWR supports multi-master configurations. However, it's essential to ensure that each master device has a unique address and that the bus is properly terminated to prevent signal reflections and errors.
Use TI's debugging tools, such as the ISO1042DWR Evaluation Module, to analyze the signal waveforms and protocol activity. Also, check the device's status registers and error flags to identify the source of the issue. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XISO1042DWR Overview

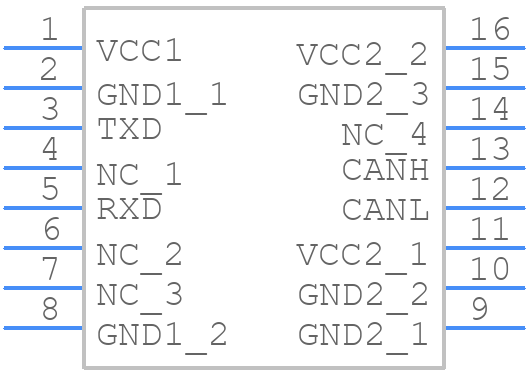

Use the download button to access the XISO1042DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XISO1,
or try a keyword search, such as Network Interfaces
