XL-DA5461SRBC - XINGLIGHT

Description: Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Cathode 2.3V 20mA 0.748" H x 1.984" W x 0.315" D (19.00mm x 50.40mm x 8.00mm) 12-DIP (0.600", 15.24mm)

Download XL-DA5461SRBC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XL-DA5461SRBC model

Email notifications will be applied after download.

Send part feedback

Symbol

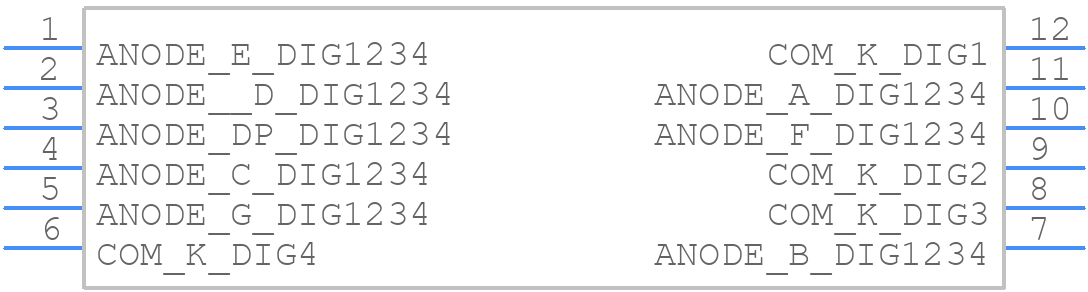

XL-DA5461SRBC - XINGLIGHT - PCB symbol

PCB Footprints

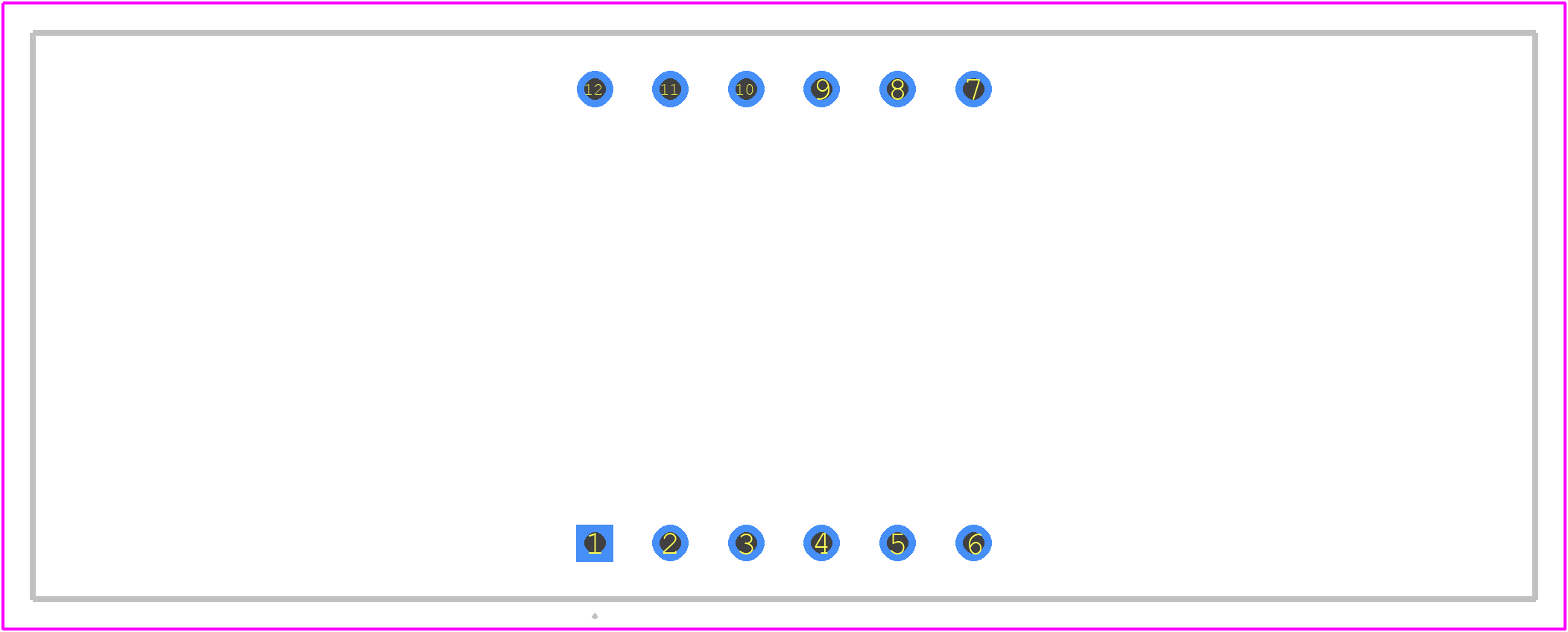

XL-DA5461SRBC - XINGLIGHT PCB footprint - Other - Other - 12-DIP

3D Models

XL-DA5461SRBC - XINGLIGHT - 3D model - Other - 12-DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for XL-DA5461SRBC
Part Number XL-DA5461SRBC
Manufacturer XINGLIGHT
Pin Count 12
Part Category Display
Package Category Other
Footprint Name Other - 12-DIP
Released Date Jun 20, 2025
Last Modified Date Jun 20, 2025 11:11 AM UTC
Pinout / Pin List Click Here (Member Only)

XL-DA5461SRBC Details

Manufacturer Part Number:
XL-DA5461SRBC
Manufacturer:
XINGLIGHT

Trust Checks

Community Provided

System Verified

Community Approved

XL-DA5461SRBC Overview

Use the download button to access the XL-DA5461SRBC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XL-DA, or try a keyword search, such as Visible LEDs
