XL1410E1 - XLSEMI

Description: Wide 3.6V to 18V Input Voltage Range Output Adjustable from 1.222V to 16V Maximum Duty Cycle 100% Minimum Drop Out 0.6V Fixed 380KHz Switching Frequency 2A Constant Output Current Capability Internal Optimize Power MOSFET High efficiency

Download XL1410E1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XL1410E1 model

Email notifications will be applied after download.

Send part feedback

Symbol

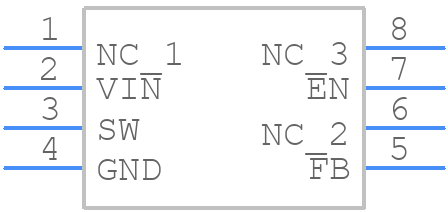

XL1410E1 - XLSEMI - PCB symbol

PCB Footprints

XL1410E1 - XLSEMI PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8

3D Models

XL1410E1 - XLSEMI - 3D model - Small Outline Packages - SOIC-8

Datasheet Download Datasheet
Stock & Prices Price & Stock for XL1410E1
Part Number XL1410E1
Manufacturer XLSEMI
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC-8
Released Date Dec 30, 2024
Last Modified Date Dec 30, 2024 1:25 PM UTC
Pinout / Pin List Click Here (Member Only)

XL1410E1 Details

Manufacturer Part Number:
XL1410E1
Manufacturer:
XL Semiconductors

Trust Checks

Community Provided

System Verified

Community Approved

XL1410E1 Overview

Use the download button to access the XL1410E1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XL141, or try a keyword search, such as XO
