XL1509E - XLSEMI

Description: Wide 4.5V to 40V Input Voltage Range  3.3V,5V,12V, and adjustable versions  Output Adjustable from 1.23V to 37V  Maximum Duty Cycle 100%  Minimum Drop Out 1.5V  Fixed 150KHz Switching Frequency  2A Constant Output Current Capability  Internal Optimize Power Transistor  High efficiency  Excellent line and load regulation  TTL shutdown capability  ON/OFF pin with hysteresis function  Built in thermal shutdown function  Built in current limit function  Built in second current limit

Download XL1509E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XL1509E model

Email notifications will be applied after download.

Send part feedback

Symbol

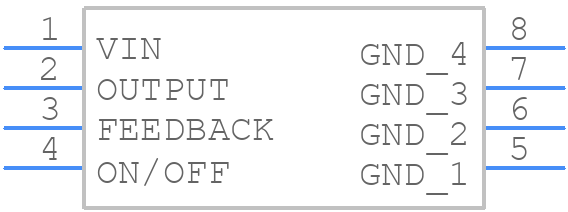

XL1509E - XLSEMI - PCB symbol

PCB Footprints

XL1509E - XLSEMI PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8

3D Models

XL1509E - XLSEMI - 3D model - Small Outline Packages - SOIC-8

Datasheet Download Datasheet
Stock & Prices Price & Stock for XL1509E
Part Number XL1509E
Manufacturer XLSEMI
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC-8
Released Date Jun 17, 2024
Last Modified Date Jun 17, 2024 9:04 AM UTC
Pinout / Pin List Click Here (Member Only)

XL1509E Details

Manufacturer Part Number:
XL1509E
Manufacturer:
XL Semiconductors

Trust Checks

Community Provided

System Verified

Community Approved

XL1509E Overview

Use the download button to access the XL1509E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XL150, or try a keyword search, such as XO
