XLF-192+ - Mini-Circuits

Description: Signal Conditioning Reflectionless Low Pass Filter, DC - 1900 MHz, 50

Download XLF-192+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

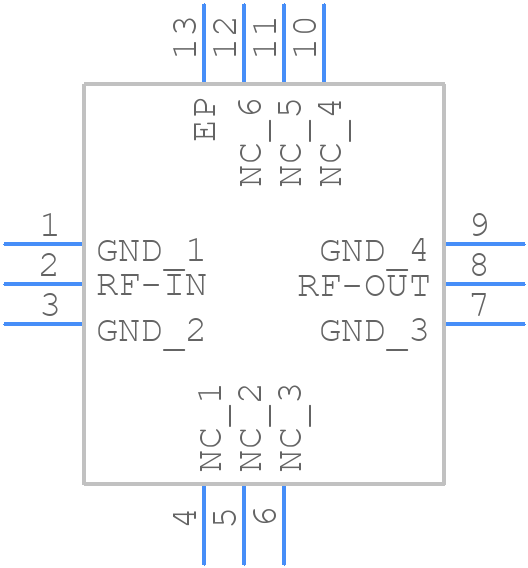

Symbol
XLF-192+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XLF-192+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - XLF-192+
click to zoom
3D Models
XLF-192+ - Mini-Circuits - 3D model - Quad Flat No-Lead - XLF-192+
click to zoom

XLF-192+ Details

  • Manufacturer Part Number:

    XLF-192+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.6

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    2400 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR:

    1.2

  • Width:

    3 mm

XLF-192+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • To achieve the specified 3 dB bandwidth, it's crucial to use a 50 ohm transmission line, ensure proper PCB layout, and use the recommended termination resistors (R1 and R2) as shown in the datasheet. Additionally, the input and output signals should be properly matched to 50 ohms.
  • The maximum input power that the XLF-192+ can handle is +15 dBm. Exceeding this power may cause damage to the device or affect its performance.
  • The termination resistors (R1 and R2) should be chosen based on the specific application and the desired impedance matching. Mini-Circuits provides a termination resistor calculator on their website, which can help determine the optimal values for R1 and R2.
  • The XLF-192+ is specified to operate from -40°C to +85°C. However, it's essential to note that the device's performance may vary across this temperature range, and it's recommended to consult the datasheet for specific temperature-related characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XLF-192+ Overview

Use the download button to access the XLF-192+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLF-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
