XLF-221+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS LOW PASS FILTER

Download XLF-221+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

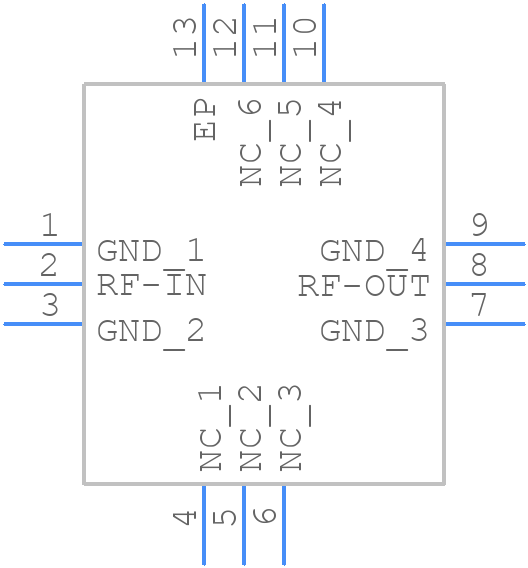

XLF-221+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XLF-221+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - XLF-221+
click to zoom
3D Models
XLF-221+ - Mini-Circuits - 3D model - Quad Flat No-Lead - XLF-221+
click to zoom

XLF-221+ Details

  • Manufacturer Part Number:

    XLF-221+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.6

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    370 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm

XLF-221+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a width of 0.035 inches (0.89 mm) and a substrate thickness of 0.031 inches (0.79 mm) for optimal performance. Additionally, it's recommended to keep the component away from any nearby metal objects or vias to minimize parasitic effects.
  • While the XLF-221+ is designed for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, the insertion loss and return loss may not meet the specified values. It's recommended to consult with Mini-Circuits' application engineers for guidance on using the XLF-221+ in non-50-ohm systems.
  • The maximum power handling of the XLF-221+ is 1 watt. Exceeding this power rating may cause damage to the component or affect its performance.
  • The XLF-221+ is rated for operation up to 85°C. While it can tolerate short-term excursions up to 100°C, prolonged exposure to high temperatures may affect its performance and reliability. Consult with Mini-Circuits' application engineers for guidance on using the XLF-221+ in high-temperature environments.
  • The typical lead time for the XLF-221+ is 2-4 weeks, depending on the quantity and availability. It's recommended to check with Mini-Circuits or their authorized distributors for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XLF-221+ Overview

Use the download button to access the XLF-221+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLF-2, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
