XLF-252+ - Mini-Circuits

Description: Signal Conditioning REFLECTIONLESS LOW PASS FILTER

Download XLF-252+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

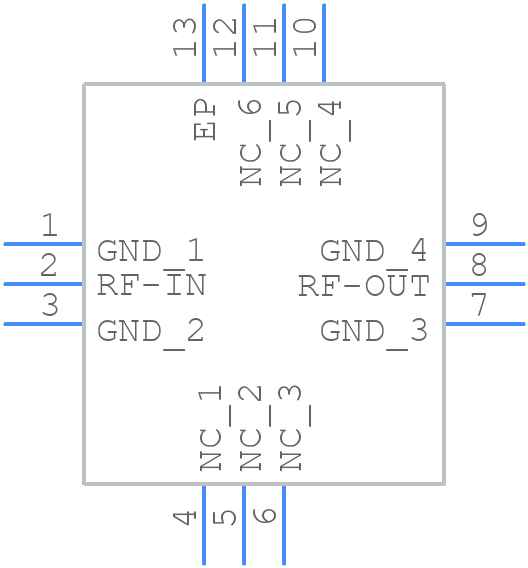

Symbol
XLF-252+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
XLF-252+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-13
click to zoom
3D Models
XLF-252+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-13
click to zoom

XLF-252+ Details

  • Manufacturer Part Number:

    XLF-252+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    3220 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.6 dB

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR:

    1.3

  • Width:

    3 mm

XLF-252+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits recommends using their impedance matching calculator tool, which can be found on their website. The tool provides a simple and effective way to calculate the required impedance matching components.
  • While the datasheet doesn't explicitly state the maximum power handling, Mini-Circuits recommends a maximum input power of +15 dBm to ensure reliable operation and prevent damage to the device.
  • The XLF-252+ is rated for operation up to 85°C, but it's essential to derate the power handling and consider the thermal resistance of the device when operating in high-temperature environments. Consult with Mini-Circuits' application engineers for specific guidance.
  • Mini-Circuits provides a troubleshooting guide in their application note AN-60-015, which covers common issues and their solutions. Additionally, their application engineers are available to provide support and guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XLF-252+ Overview

Use the download button to access the XLF-252+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLF-2, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
