XLF-421+ - Mini-Circuits

Description: Signal Conditioning Reflectionless Low Pass Filter, DC - 420 MHz, 50 ohms

Download XLF-421+ Model

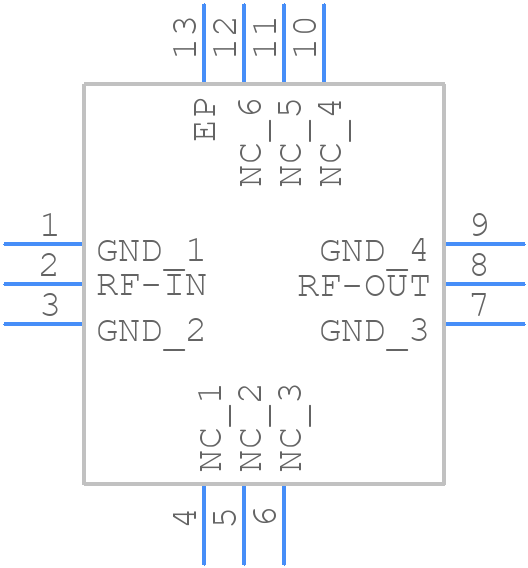

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XLF-421+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-13
click to zoom
3D Models
XLF-421+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - QFN-13
click to zoom

XLF-421+ Details

  • Manufacturer Part Number:

    XLF-421+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.6

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    610 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.89 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • VSWR:

    1.2

  • Width:

    3 mm

XLF-421+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
  • To achieve the best possible noise figure, ensure that the input and output impedances are well-matched, and the device is operated within its recommended bias conditions. Additionally, use a high-quality, low-noise power supply and minimize the length of the input and output transmission lines.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the device's power dissipation above +70°C to ensure long-term reliability and prevent thermal runaway.
  • Yes, the XLF-421+ can be used in a push-pull or balanced configuration to improve linearity, reduce distortion, and increase output power. However, this requires careful circuit design and layout to ensure proper phasing and impedance matching.
  • To troubleshoot oscillation or instability issues, check the PCB layout and ensure that the input and output transmission lines are properly terminated and decoupled. Also, verify that the power supply is stable and well-regulated, and that the device is operated within its recommended bias conditions.
