Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
The XLM51551QDSSTQ1 is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Monitor the device's temperature using the internal temperature sensor or an external thermometer.
Not using the recommended bypass capacitors can lead to instability, noise, and reduced performance. The capacitors help filter out high-frequency noise and provide a low-impedance path to ground, ensuring the device operates within specifications.
To troubleshoot I2C issues, check the clock frequency, ensure proper pull-up resistors are used, and verify the slave address. Use a logic analyzer or oscilloscope to monitor the I2C bus signals and identify any errors or miscommunications.
The recommended power-up sequence is to apply the power supply voltage (VDD) before the input voltage (VIN). This ensures the internal regulators and voltage references are properly initialized, preventing potential damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XLM51551QDSSTQ1 Overview

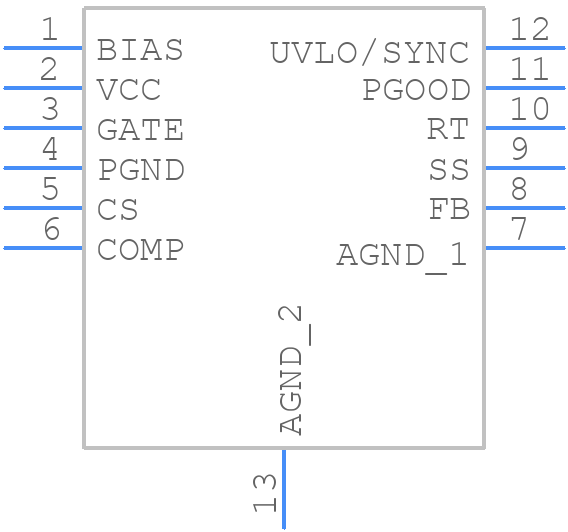

Use the download button to access the XLM51551QDSSTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLM51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
