Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the XLM5155QDSSTQ1 operates within its specified temperature range, it's crucial to provide adequate heat sinking, especially in high-power applications. Use a thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
The XLM5155QDSSTQ1 can generate EMI and RFI due to its high-frequency switching operation. To mitigate these issues, use proper shielding, such as a metal can or a shielded enclosure, and ensure good grounding practices. Additionally, use EMI filters, such as common-mode chokes or ferrite beads, on the input and output lines, and consider using a spread-spectrum clock generator to reduce EMI emissions.
The XLM5155QDSSTQ1 is a high-reliability device, but it's essential to follow Texas Instruments' guidelines for using the device in safety-critical applications. Ensure that you comply with relevant industry standards, such as IEC 61508 or ISO 26262, and perform thorough testing and validation to ensure the device meets the required safety and reliability standards.
To troubleshoot issues with the XLM5155QDSSTQ1, start by reviewing the datasheet and application notes to ensure that the device is used within its specified operating conditions. Use oscilloscopes and other diagnostic tools to measure the input and output voltages, currents, and temperatures. Check for proper PCB layout, component selection, and thermal management. If the issue persists, consult with Texas Instruments' technical support or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XLM5155QDSSTQ1 Overview

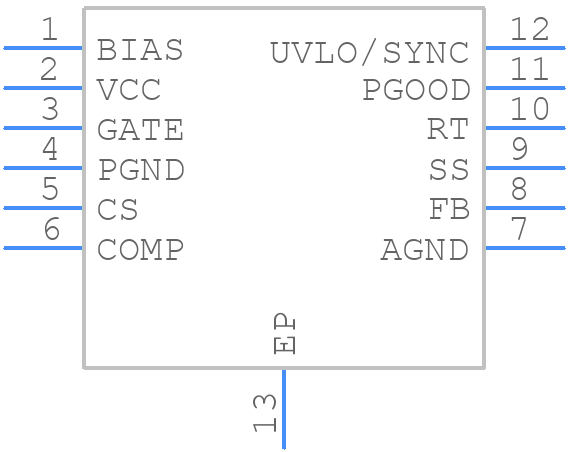

Use the download button to access the XLM5155QDSSTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLM51,
or try a keyword search, such as Switching Regulator or Controllers
