Texas Instruments provides a recommended PCB layout in the XLM5157QRTERQ1 datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive nodes away from noise sources.
The XLM5157QRTERQ1 is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and avoiding hot spots on the PCB.
Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability. The capacitors help filter out noise, regulate the output voltage, and ensure proper startup and shutdown behavior.
Use a systematic approach to troubleshoot issues, starting with checking the power supply, input and output voltages, and component values. Use oscilloscopes and logic analyzers to monitor signals and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
The XLM5157QRTERQ1 is a high-reliability device, but it's essential to follow Texas Instruments' guidelines for high-reliability and safety-critical applications. This includes using the device within its specified operating conditions, following proper design and manufacturing practices, and conducting thorough testing and validation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XLM5157QRTERQ1 Overview

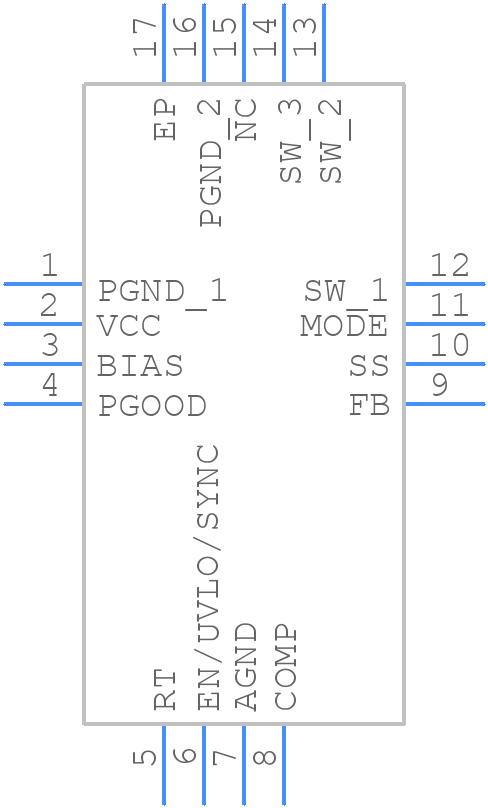

Use the download button to access the XLM5157QRTERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLM51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
