Texas Instruments provides a recommended PCB layout in the XLM5171QPHPRQ1 datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
The XLM5171QPHPRQ1 is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Monitor the device's junction temperature (TJ) to prevent overheating.
Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability. The capacitors help filter out noise, regulate the output voltage, and ensure proper operation. Always follow the recommended capacitor values and types specified in the datasheet.
When troubleshooting issues with the EN pin, check the voltage level, ensure it's within the specified range, and verify that it's properly connected to the correct pin. Also, review the datasheet's timing diagrams to ensure correct timing and pulse width modulation (PWM) signals.
Exceeding the maximum input voltage rating can cause permanent damage to the device, including latch-up, overheating, or even destruction. Always ensure the input voltage remains within the specified range to prevent damage and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XLM5171QPHPRQ1 Overview

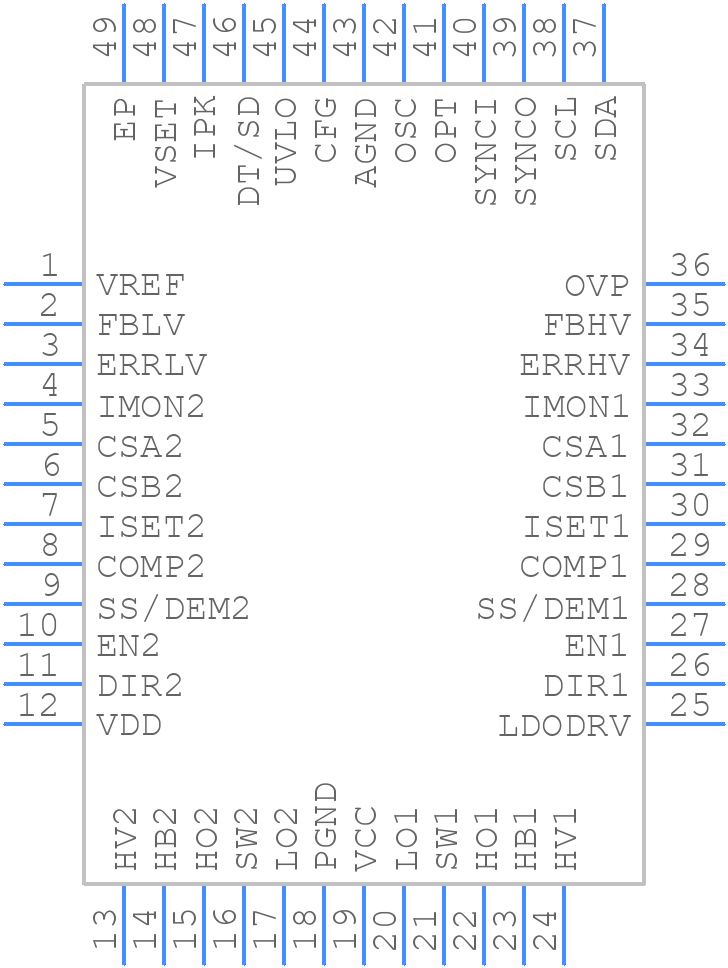

Use the download button to access the XLM5171QPHPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XLM51,
or try a keyword search, such as Switching Regulator or Controllers
