XLMG3422R030RQZT - Texas Instruments

XLMG3422R030RQZT Details

• Manufacturer Part Number:

  XLMG3422R030RQZT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

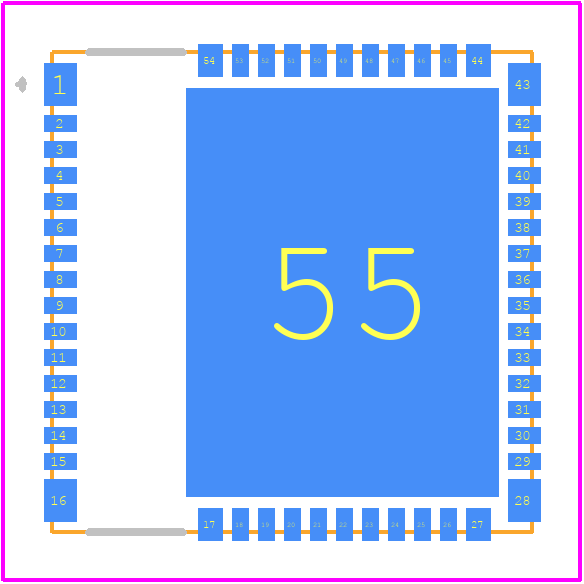

• Package Description:

  VQFN-54

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2020-11-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Case Connection:

  SOURCE

• Configuration:

  COMPLEX

• DS Breakdown Voltage-Min:

  600 V

• Drain-source On Resistance-Max:

  0.035 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  S-PQCC-N54

• JESD-609 Code:

  e4

• Number of Elements:

  1

• Number of Terminals:

  54

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Polarity/Channel Type:

  N-CHANNEL

• Surface Mount:

  YES

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Position:

  QUAD

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  GALLIUM NITRIDE

• Turn-off Time-Max (toff):

  86 ns

• Turn-on Time-Max (ton):

  56 ns
