XMC1100T016F0032ABXUMA1 - Infineon

Description: ARM MCU, XMC Family XMC11xx Series Microcontrollers, ARM Cortex-M0, 32 bit, 32 MHz, 32 KB

Download XMC1100T016F0032ABXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

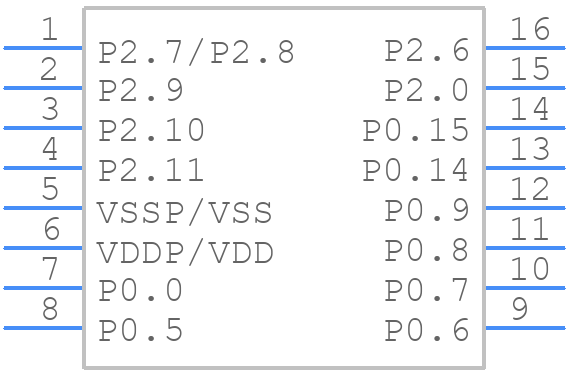

XMC1100T016F0032ABXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
XMC1100T016F0032ABXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-16-8
click to zoom
3D Models
XMC1100T016F0032ABXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSSOP-16-8
click to zoom

XMC1100T016F0032ABXUMA1 Details

  • Manufacturer Part Number:

    XMC1100T016F0032ABXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    18

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    34

  • Number of Terminals:

    38

  • PWM Channels:

    YES

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XMC1100T016F0032ABXUMA1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for XMC1100 is 1.8V to 5.5V, with a typical voltage of 3.3V.
  • The XMC1100 can be clocked from an internal oscillator, an external crystal oscillator, or an external clock source. The clock source can be configured using the Clock Generation Unit (CGU) registers.
  • The maximum frequency of the XMC1100 is 32 MHz, but it can be overclocked up to 40 MHz with reduced voltage and temperature ranges.
  • The XMC1100's ADC can be configured using the ADC registers. The ADC can operate in single-shot or continuous conversion modes, and can be triggered by software or external events.
  • The Boot Mode Pins (BMODE) are used to select the boot mode of the XMC1100. They can be used to select between booting from internal flash, external flash, or serial boot modes.
