XMC1301Q040F0016ABXUMA1 footprint, schematic symbol and 3D model by Infineon

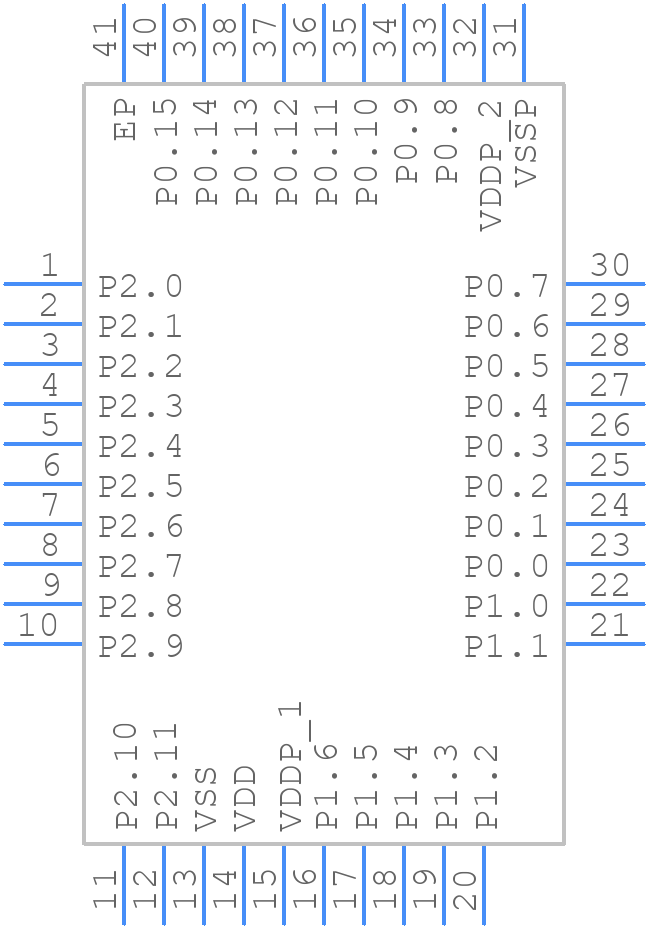

Symbol

click to zoom

PCB Footprints

XMC1301Q040F0016ABXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-40-13

click to zoom

3D Models

XMC1301Q040F0016ABXUMA1 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-40-13

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XMC1301Q040F0016ABXUMA1
Part Number XMC1301Q040F0016ABXUMA1
Manufacturer Infineon
Pin Count 41
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - PG-VQFN-40-13
Released Date Mar 25, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

XMC1301Q040F0016ABXUMA1 Details

Manufacturer Part Number:
XMC1301Q040F0016ABXUMA1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
VQFN-40
Country Of Origin:
Philippines, Taiwan
ECCN Code:
3A991.a.2
HTS Code:
8542.31.00.25
Factory Lead Time:
18 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
8
Has ADC:
YES
Bit Size:
32
Boundary Scan:
YES
Clock Frequency-Max:
32 MHz
DAC Channels:
NO
DMA Channels:
NO
JESD-30 Code:
S-PQCC-N40
JESD-609 Code:
e4
Length:
5 mm
Number of I/O Lines:
34
Number of Terminals:
40
On Chip Program ROM Width:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
RAM (bytes):
16384
ROM (words):
16384
ROM Programmability:
FLASH
Seated Height-Max:
0.9 mm
Speed:
32 MHz
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3.3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
5 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC

XMC1301Q040F0016ABXUMA1 Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout guide in their application note AN1245, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The clock settings for the XMC1301Q040F0016ABXUMA1 can be configured using the Infineon DAVE™ (Digital Application Virtual Engineer) development environment, which provides a graphical interface for configuring clock settings, peripherals, and other device parameters.
The XMC1301Q040F0016ABXUMA1 has an operating temperature range of -40°C to 125°C, making it suitable for use in industrial and automotive applications.
Infineon provides a secure boot and firmware update solution through their XMC™ Secure Boot and Firmware Update application note, which includes guidelines for implementing secure boot mechanisms and firmware updates using cryptographic techniques.
The power consumption characteristics of the XMC1301Q040F0016ABXUMA1 are dependent on the operating frequency, voltage, and peripheral usage. Infineon provides power consumption estimates in their datasheet and application notes, and recommends using their Power Estimation Tool (PET) to estimate power consumption for specific use cases.

Trust Checks

Community Provided

System Verified

Community Approved

XMC1301Q040F0016ABXUMA1 Overview

Use the download button to access the XMC1301Q040F0016ABXUMA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XMC13, or try a keyword search, such as Microcontrollers
