XMC4200F64F256ABXQMA1 - Infineon

Description: MCU 32-bit ARM Cortex M4 RISC 256KB Flash 3.3V 64-Pin LQFP EP Tray

Download XMC4200F64F256ABXQMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XMC4200F64F256ABXQMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

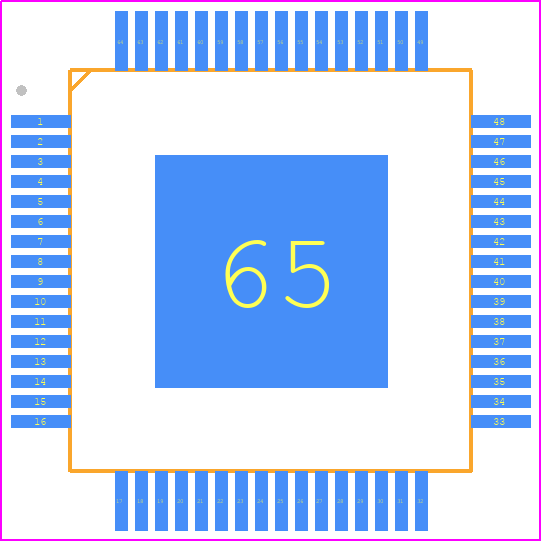

XMC4200F64F256ABXQMA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-61-19
click to zoom
3D Models
XMC4200F64F256ABXQMA1 - Infineon - 3D model - Quad Flat Packages - PG-LQFP-61-19
click to zoom

XMC4200F64F256ABXQMA1 Details

  • Manufacturer Part Number:

    XMC4200F64F256ABXQMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8.13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Number of I/O Lines:

    44

  • Number of Terminals:

    64

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    40960

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    80 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XMC4200F64F256ABXQMA1 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XMC4200F64F256ABXQMA1 is 144 MHz.
  • The clock settings for the XMC4200F64F256ABXQMA1 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to configure the clock sources, clock dividers, and clock outputs.
  • The Boot Mode Pins (BMODE) on the XMC4200F64F256ABXQMA1 are used to select the boot mode of the device. The BMODE pins can be used to select between different boot modes, such as booting from flash, booting from UART, or booting from SPI.
  • The XMC4200F64F256ABXQMA1 has a built-in watchdog timer (WDT) module. To implement a watchdog timer, you need to configure the WDT module by setting the watchdog timer period, enabling the watchdog timer, and periodically resetting the watchdog timer to prevent a system reset.
  • The Power Management Controller (PMC) on the XMC4200F64F256ABXQMA1 is used to manage the power consumption of the device. The PMC module allows you to configure the power modes, voltage regulators, and clock gating to optimize power consumption.
