XMC4200F64F256BAXQMA1 - Infineon

Description: MCU 32-bit ARM Cortex M4 RISC 256KB Flash 3.3V 64-Pin TQFP EP Tray

Download XMC4200F64F256BAXQMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XMC4200F64F256BAXQMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

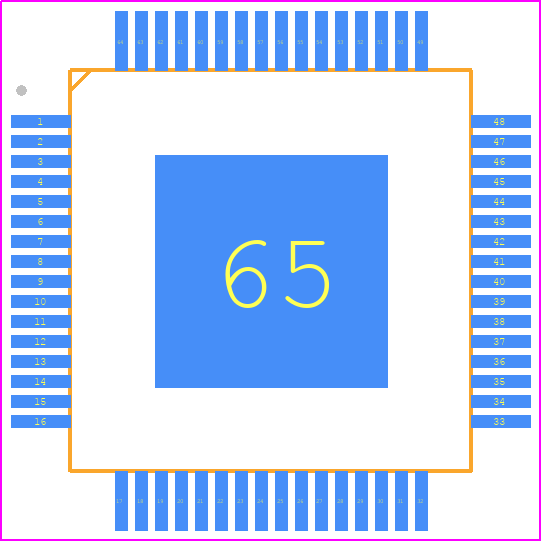

XMC4200F64F256BAXQMA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-61-19
click to zoom
3D Models
XMC4200F64F256BAXQMA1 - Infineon - 3D model - Quad Flat Packages - PG-LQFP-61-19
click to zoom

XMC4200F64F256BAXQMA1 Details

  • Manufacturer Part Number:

    XMC4200F64F256BAXQMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-64

  • Country Of Origin:

    Germany, Philippines, Taiwan

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    45

  • Number of Terminals:

    64

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • RAM (bytes):

    40960

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    80 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
