XMC4504F100F512ACXQMA1 - Infineon

Description: ARM Microcontrollers - MCU XMC4000

Download XMC4504F100F512ACXQMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

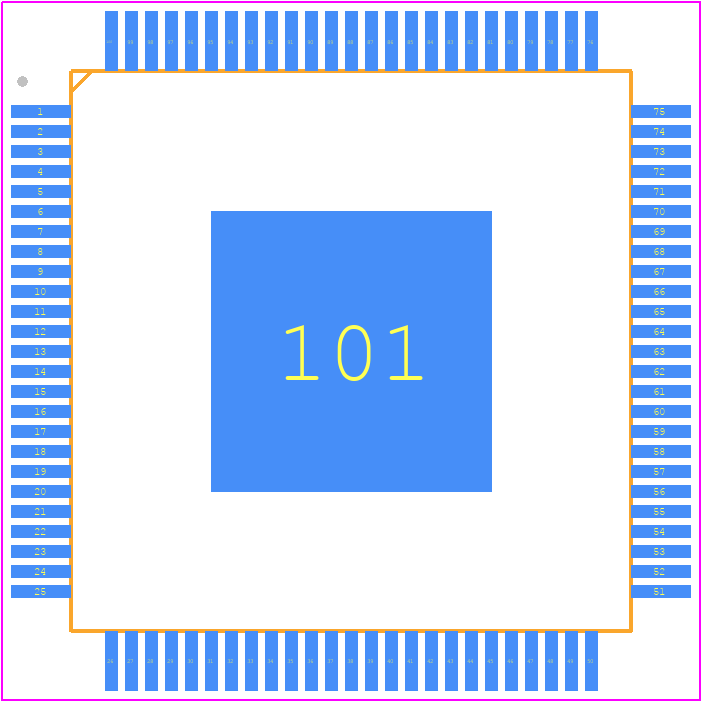

XMC4504F100F512ACXQMA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-100-11
click to zoom
3D Models
XMC4504F100F512ACXQMA1 - Infineon  - 3D model - Quad Flat Packages - PG-LQFP-100-11
click to zoom

XMC4504F100F512ACXQMA1 Details

  • Manufacturer Part Number:

    XMC4504F100F512ACXQMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    73

  • Number of Terminals:

    100

  • PWM Channels:

    YES

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Speed:

    120 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

XMC4504F100F512ACXQMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the XMC4504F100F512ACXQMA1 is -40°C to 125°C.
  • The clock settings for the XMC4504F100F512ACXQMA1 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to select the clock source, configure the clock frequency, and enable or disable the clock output.
  • The maximum current consumption of the XMC4504F100F512ACXQMA1 depends on the operating frequency and voltage. According to the datasheet, the maximum current consumption is approximately 120 mA at 100 MHz and 3.3 V.
  • The XMC4504F100F512ACXQMA1 has a built-in watchdog timer (WDT) module. To implement a watchdog timer, you need to configure the WDT module by setting the watchdog timer period, enabling the watchdog timer, and periodically resetting the watchdog timer to prevent a system reset.
  • The boot mode pins (BOOT[1:0]) on the XMC4504F100F512ACXQMA1 are used to select the boot mode of the device. The boot mode pins determine whether the device boots from the internal flash memory or an external memory device.
