XMLCTW-A2-0000-00C2AAAB1 - CREE LED

Description: High Power LEDs - Multi-Color

Download XMLCTW-A2-0000-00C2AAAB1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

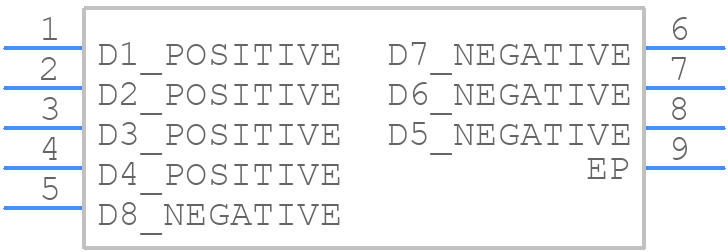

Symbol
XMLCTW-A2-0000-00C2AAAB1 - CREE LED - PCB symbol
click to zoom
PCB Footprints
XMLCTW-A2-0000-00C2AAAB1 - CREE LED PCB footprint - Other - Other - XMLCTW-A2-0000-00C2AAAB1-2
click to zoom
3D Models
XMLCTW-A2-0000-00C2AAAB1 - CREE LED - 3D model - Other - XMLCTW-A2-0000-00C2AAAB1-2
click to zoom

XMLCTW-A2-0000-00C2AAAB1 Details

  • Manufacturer Part Number:

    XMLCTW-A2-0000-00C2AAAB1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Cree, Inc.

  • YTEOL:

    6.1

  • Additional Feature:

    UL RECOGNIZED

  • Color:

    RED/GREEN/BLUE/NEUTRAL WHITE

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN ZENER DIODE

  • Forward Current-Max:

    1 A

  • Forward Voltage-Max:

    2.6 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Optoelectronic Device Type:

    MULTIPLE COLOR LED

  • Overall Height:

    3.02 mm

  • Packing Method:

    TR, 13 INCH

  • Shape:

    ROUND

  • Size:

    4.52 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    1.26 mm

  • Viewing Angle:

    130 deg

XMLCTW-A2-0000-00C2AAAB1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range is -40°C to 85°C, with a maximum junction temperature of 125°C.
  • Proper thermal management can be achieved by using a heat sink with a thermal resistance of ≤ 5°C/W, and ensuring good thermal contact between the LED module and the heat sink.
  • The maximum forward current rating is 700mA, but it's recommended to operate at a maximum of 500mA to ensure optimal performance and lifespan.
  • Yes, the XMLCTW-A2-0000-00C2AAAB1 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors such as moisture and UV radiation.
  • Cree, Inc. uses a proprietary binning and sorting process to ensure consistent performance and color characteristics across different batches of the XMLCTW-A2-0000-00C2AAAB1.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XMLCTW-A2-0000-00C2AAAB1 Overview

Use the download button to access the XMLCTW-A2-0000-00C2AAAB1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XMLCT, or try a keyword search, such as Other Optoelectronics
