Texas Instruments provides a recommended PCB layout in the XOPA810IDT datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to reduce noise and ensure signal integrity.
The XOPA810IDT has a programmable input voltage range. You can configure it using the VREF pin, which sets the internal reference voltage. The input voltage range can be set between 0.5V to 5.5V by adjusting the VREF pin voltage. Refer to the datasheet for specific configuration details.
The XOPA810IDT supports clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform thorough testing to ensure reliable operation at higher clock frequencies.
The XOPA810IDT has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal vias, or a thermally conductive PCB material. You should also follow proper thermal design guidelines and perform thermal simulations to ensure the device operates within its specified temperature range.
The recommended power-up sequence for the XOPA810IDT is to apply the power supply voltage (VCC) before the input voltage (VIN). This ensures that the internal biasing and reference circuits are properly initialized before the input voltage is applied. Refer to the datasheet for specific power-up sequence details.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XOPA810IDT Overview

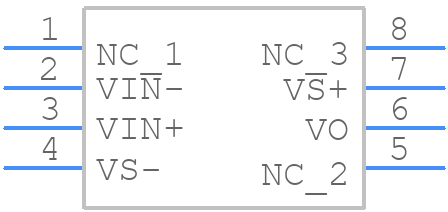

Use the download button to access the XOPA810IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XOPA8,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
