XPEBWT-L1-0000-00BZ7 - CREE LED

Description: Cree XLamp XPE2 Series SMD White 3000K LED, 110 °

Download XPEBWT-L1-0000-00BZ7 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XPEBWT-L1-0000-00BZ7 model

Email notifications will be applied after download.

Send part feedback

Symbol

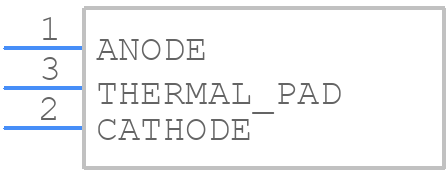

XPEBWT-L1-0000-00BZ7 - CREE LED - PCB symbol

PCB Footprints

XPEBWT-L1-0000-00BZ7 - CREE LED PCB footprint - Other - Other - XP-E_LED(3.45X3.45)_1

Datasheet Download Datasheet
Stock & Prices Price & Stock for XPEBWT-L1-0000-00BZ7
Part Number XPEBWT-L1-0000-00BZ7
Manufacturer CREE LED
Pin Count 3
Part Category LED
Package Category Other
Footprint Name Other - XP-E_LED(3.45X3.45)_1
Released Date Nov 10, 2017
Last Modified Date Aug 16, 2023 11:59 AM UTC
Pinout / Pin List Click Here (Member Only)

XPEBWT-L1-0000-00BZ7 Details

Manufacturer Part Number:
XPEBWT-L1-0000-00BZ7
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Factory Lead Time:
8 Weeks
Date Of Intro:
2016-05-27
Manufacturer:
Cree, Inc.
Optoelectronic Device Type:
SINGLE COLOR LED
