Part Image

XPP736625.000000I - Renesas Electronics

Description: The XP is a quartz-based PLL clock oscillator family with <150fs phase jitter. It is ideal for enterprise level equipment that demands very low noise, stable, and accurate timing/clock sources. The XP is a quartz-based PLL oscillator with a key focus on noise reduction technologies. Typical phase jitter is 120fs over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 15MHz to 2100MHz.Short lead-time, low noise, wide frequency range, excellent ambient performance, and very little engineering

Download XPP736625.000000I Model

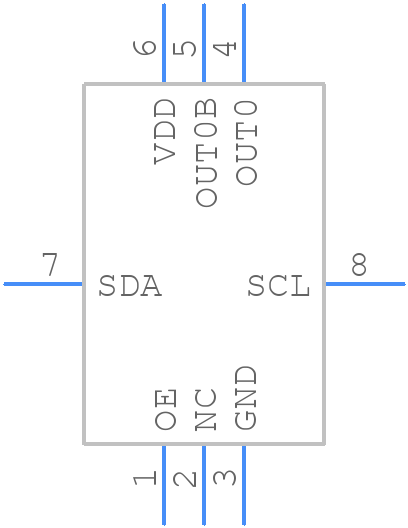

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XPP736625.000000I - Renesas Electronics PCB footprint - Other - Other - XPP736625.000000I-5
click to zoom
3D Models
XPP736625.000000I - Renesas Electronics  - 3D model - Other - XPP736625.000000I-5
click to zoom

XPP736625.000000I Details

  • Manufacturer Part Number:

    XPP736625.000000I

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CLCC

  • Pin Count:

    8

  • Manufacturer Package Code:

    JD8

  • Country Of Origin:

    Taiwan

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    625 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVPECL

  • Supply Voltage-Nom:

    3.3 V

  • Terminal Finish:

    GOLD

XPP736625.000000I Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the XPP736625 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may vary outside this range.
  • To ensure proper power-on and power-off sequencing, follow the guidelines in the datasheet. Typically, this involves applying power to the VCC pin before the VCCIO pin, and removing power from the VCCIO pin before the VCC pin. Additionally, ensure that the power supply rails are stable and within the recommended voltage range.
  • The maximum clock frequency supported by the XPP736625 is 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the specific application, PCB design, and signal integrity considerations.
  • To handle the XPP736625's JTAG interface, ensure that the TCK pin is driven by a clock signal with a frequency not exceeding 10 MHz. Additionally, use a JTAG adapter or debugger that supports the IEEE 1149.1 standard, and follow the recommended JTAG signal voltage levels and termination guidelines.
  • When designing a PCB with the XPP736625, consider the following: keep the power supply rails separate from the signal lines, use a solid ground plane, and minimize signal trace lengths and vias. Additionally, ensure that the PCB material and stackup are suitable for high-frequency signals, and follow the recommended component placement and routing guidelines.
