Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (e.g., SLUA623) and design guides (e.g., TIDA-060013). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and reduced electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application, output voltage, and current requirements. TI provides guidance on capacitor selection in their datasheet and application notes (e.g., SLUA623). In general, low-ESR capacitors with high ripple current ratings are recommended for input and output filtering.
The XPS62810 is rated for industrial temperature range (-40°C to 85°C). For high-reliability or high-temperature applications, consider using the automotive-grade version (XPS62810QWRWYRQ1A) or the high-temperature version (XPS62810QWRWYRQ1-HT). Additionally, ensure that the device is properly derated, and thermal management is implemented to prevent overheating.
The XPS62810 has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, external circuitry may be required to customize the protection thresholds and response times. TI provides guidance on implementing OCP and SCP in their application notes (e.g., SLUA623) and design guides (e.g., TIDA-060013).
To minimize radiated emissions, follow TI's recommended PCB layout and design guidelines, use proper shielding, and implement EMI filtering. Additionally, consider using spread-spectrum clocking, reducing switching frequencies, and optimizing the device's operating modes to minimize EMI.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XPS62810QWRWYRQ1 Overview

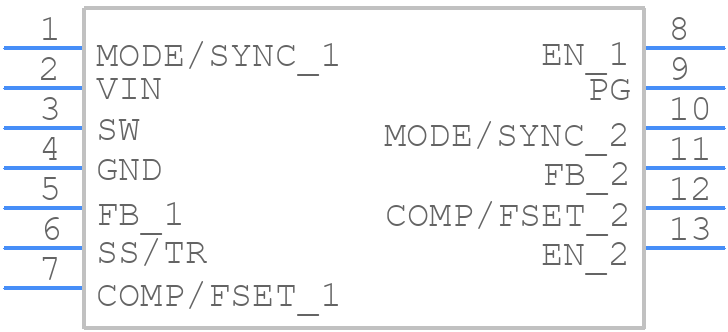

Use the download button to access the XPS62810QWRWYRQ1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
