XQR5VFX130-1CN1752B - AMD

Description: ic

Download XQR5VFX130-1CN1752B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XQR5VFX130-1CN1752B - AMD - PCB symbol
click to zoom
PCB Footprints

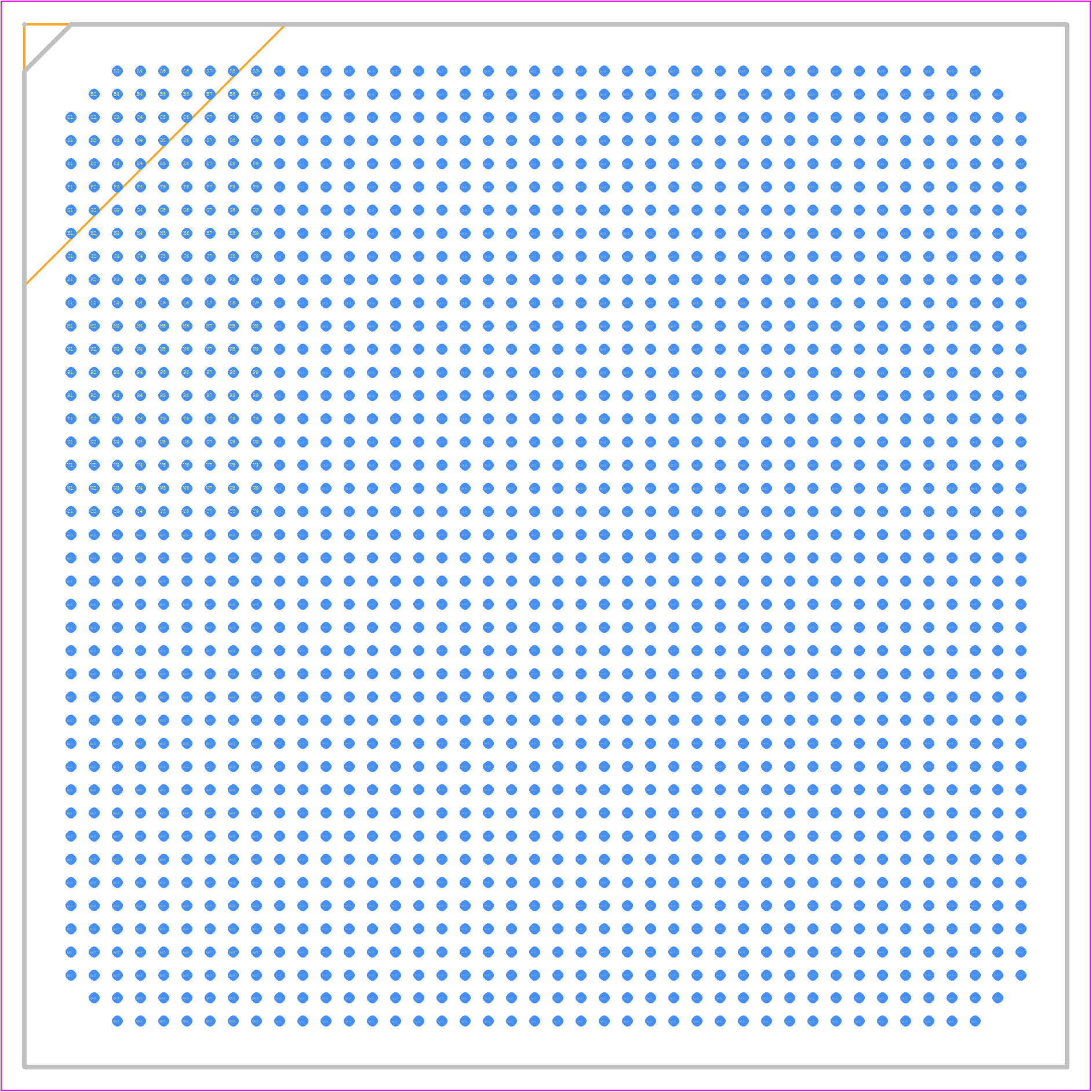

XQR5VFX130-1CN1752B - AMD PCB footprint - BGA - BGA - CN1752 BGA
click to zoom
3D Models
XQR5VFX130-1CN1752B - AMD - 3D model - BGA - CN1752 BGA
click to zoom

XQR5VFX130-1CN1752B Details

  • Manufacturer Part Number:

    XQR5VFX130-1CN1752B

  • Part Life Cycle Code:

    Active

  • Package Description:

    CGA-1752

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    AMD

  • YTEOL:

    5.8

  • Combinatorial Delay of a CLB-Max:

    0.11 ns

  • JESD-30 Code:

    S-CBGA-X1752

  • Length:

    45 mm

  • Number of CLBs:

    10240

  • Number of Logic Cells:

    131072

  • Number of Terminals:

    1752

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    10240 CLBS

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    CGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    8.8 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    UNSPECIFIED

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Dose:

    1M Rad(Si) V

  • Width:

    45 mm
