XR16C864IQ-F - EXAR

XR16C864IQ-F Details

• Manufacturer Part Number:

  XR16C864IQ-F

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

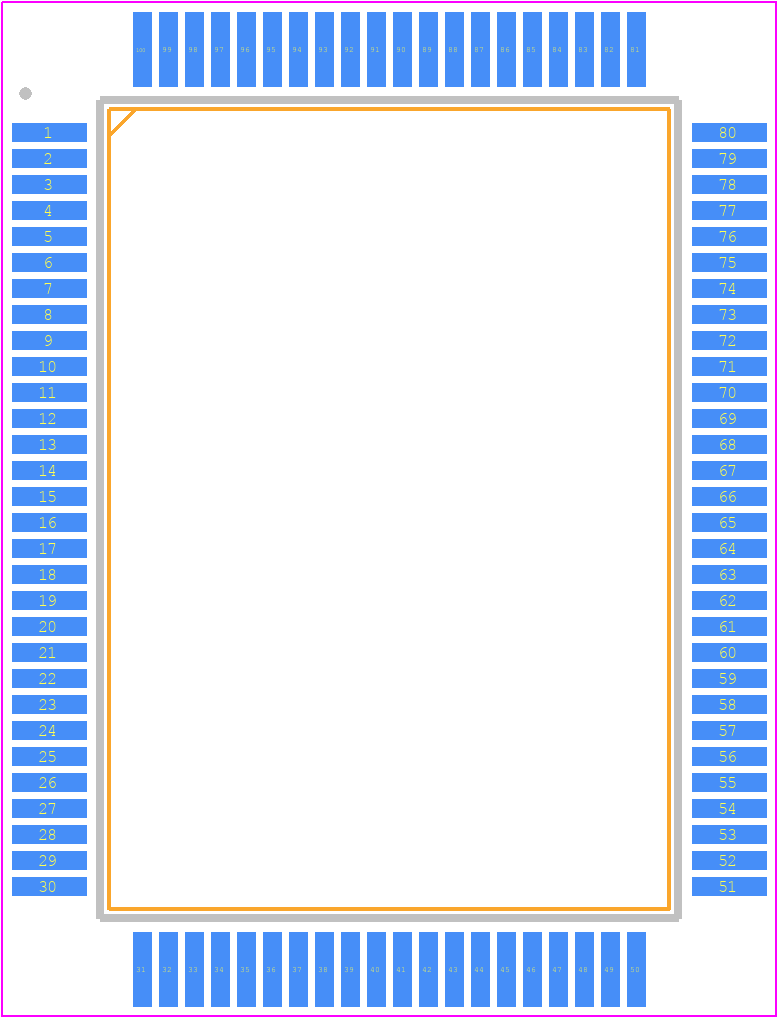

• Part Package Code:

  QFP

• Package Description:

  14 X 20 MM, GREEN, PLASTIC, QFP-100

• Pin Count:

  100

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Exar Corporation

• Additional Feature:

  ALSO OPERATES AT 2.97 V MINIMUM SUPPLY

• Address Bus Width:

  5

• Boundary Scan:

  NO

• Clock Frequency-Max:

  24 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.25 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e3

• Length:

  20 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  4

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  250

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
