For optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet, including keeping the device away from high-current carrying traces and using thermal vias to dissipate heat. Additionally, a thermal pad on the bottom of the device should be connected to a solid ground plane to improve heat dissipation.
To ensure reliable data transmission and reception, it's essential to follow the recommended transmission line impedance, use proper termination, and implement error detection and correction mechanisms. Additionally, ensure that the device is properly configured, and the clock signal is stable and within the specified frequency range.
The XR16V698IQ100-F requires a specific power sequencing and reset protocol to ensure proper device operation. The recommended power-up sequence is VCC, then VCCIO, followed by a reset pulse of at least 10 ms. The device should be held in reset until the power supplies have stabilized.
To troubleshoot issues with the XR16V698IQ100-F, start by verifying the power supply and clock signal integrity. Check the device configuration and register settings, and ensure that the transmission line impedance and termination are correct. Use oscilloscopes and logic analyzers to capture and analyze the signal waveforms and data transmission.
Yes, the XR16V698IQ100-F is a high-speed device that requires careful attention to EMI and EMC considerations. Ensure that the PCB layout and component placement minimize radiation and susceptibility to electromagnetic interference. Use shielding, filtering, and grounding techniques to reduce emissions and improve immunity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR16V698IQ100-F Overview

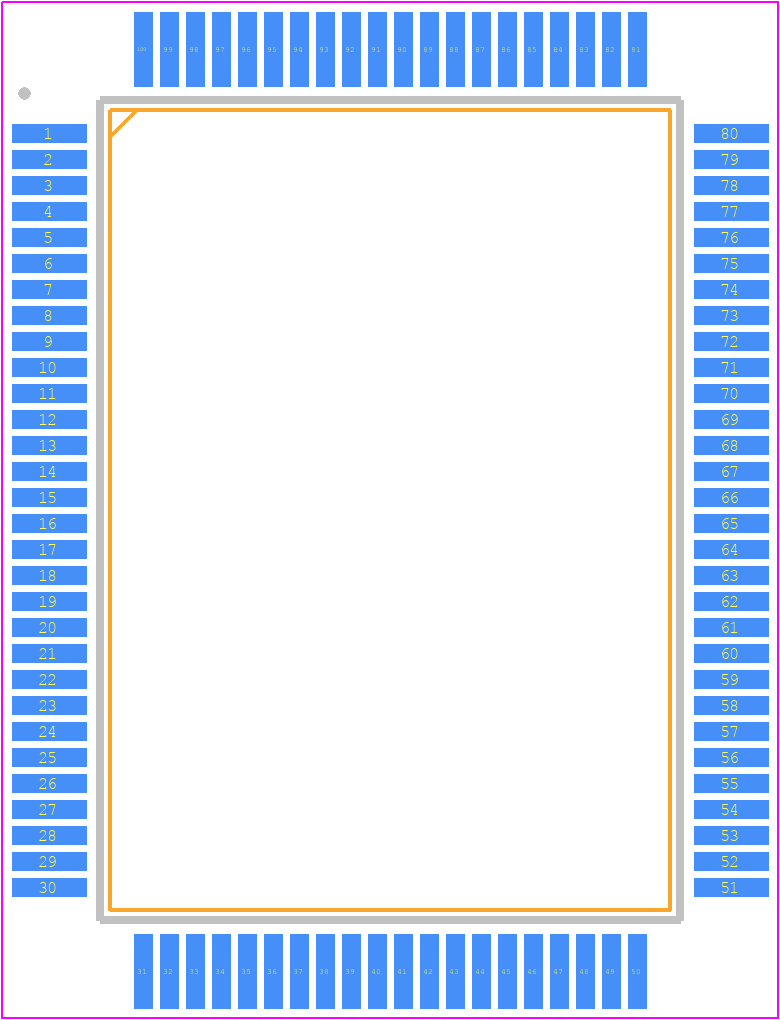

Use the download button to access the XR16V698IQ100-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR16V,
or try a keyword search, such as Serial IO/Communication Controllers
