Symbol
PCB Footprints
- Datasheet
- Stock & Prices $ Price & Stock for XR18W753IL48-F
- Part Number XR18W753IL48-F
- Manufacturer EXAR
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other

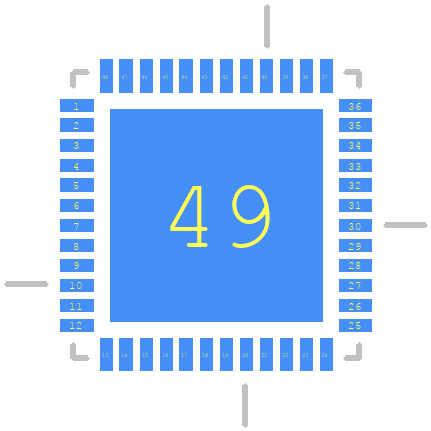

- Footprint Name Other - QFN50P700X700X100-49N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
XR18W753IL48-F Details
-
Manufacturer Part Number:
XR18W753IL48-F
-
Manufacturer:
Exar Corporation
Trust Checks
System Verified
XR18W753IL48-F Overview

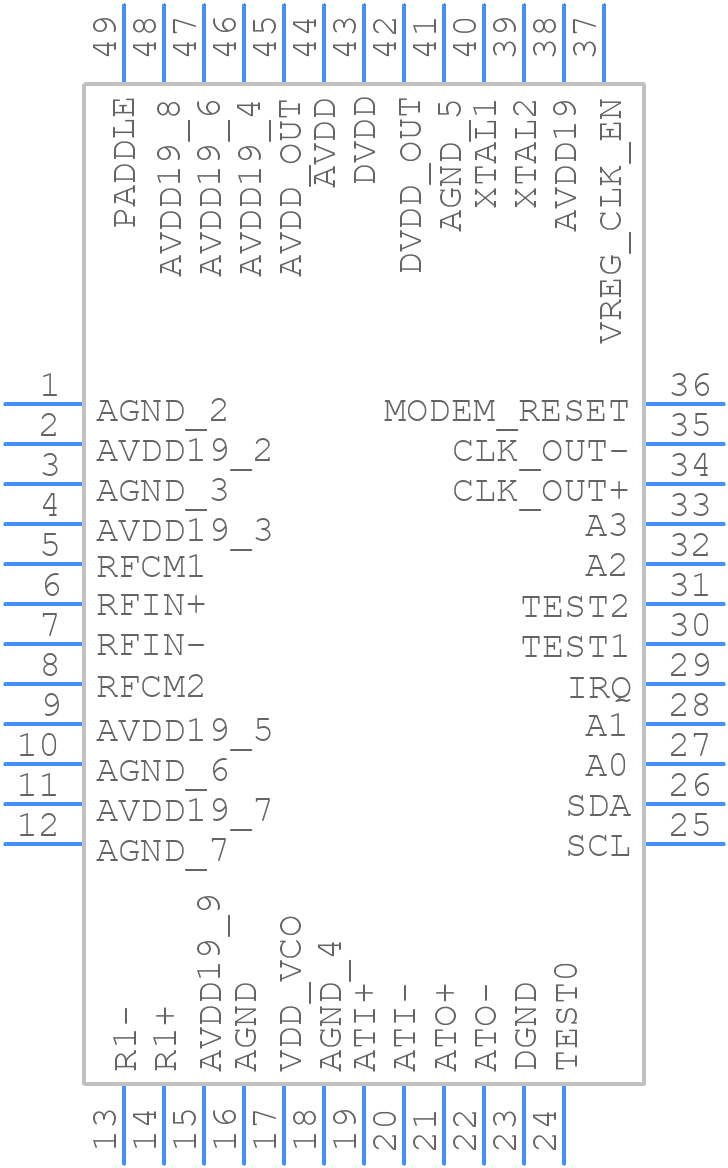

Use the download button to access the XR18W753IL48-F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XR18W,
or try a keyword search, such as Serial IO/Communication Controllers
