MaxLinear provides a reference design guide and layout recommendations in their application notes. It's essential to follow these guidelines to ensure proper thermal management and signal integrity. Additionally, a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended.
To optimize power consumption, consider using the device's power-down modes, adjusting the clock frequency, and optimizing the transmit and receive modes. MaxLinear provides power consumption estimates in the datasheet, but actual power consumption may vary depending on the specific application and usage.
The recommended PLL settings can be found in the datasheet and application notes. It's essential to follow these guidelines to ensure proper clocking and data transmission. Additionally, the device's clocking system can be configured using the provided software development kit (SDK) and API.
MaxLinear provides a range of debugging tools and resources, including a logic analyzer, oscilloscope, and software development kit (SDK). Engineers can use these tools to analyze the device's behavior, identify issues, and optimize performance. Additionally, MaxLinear's technical support team is available to provide assistance and guidance.
The XR20M1170IG16TR-F is rated for industrial temperature range (-40°C to 85°C) and can withstand various environmental conditions, including humidity and vibration. However, it's essential to follow proper storage and handling procedures to prevent damage and ensure reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR20M1170IG16TR-F Overview

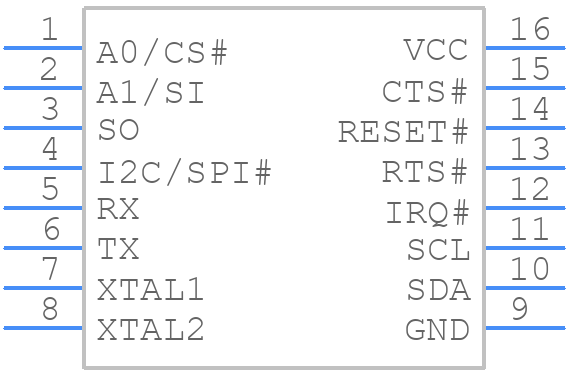

Use the download button to access the XR20M1170IG16TR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR20M,
or try a keyword search, such as Serial IO/Communication Controllers
