Part Image

XR20M1280IL24TR-F - MaxLinear, Inc.

Description: UART Interface IC 1Ch 12C/SPI UART w/ Lvl Shftrs & 4 GPIOs

Download XR20M1280IL24TR-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

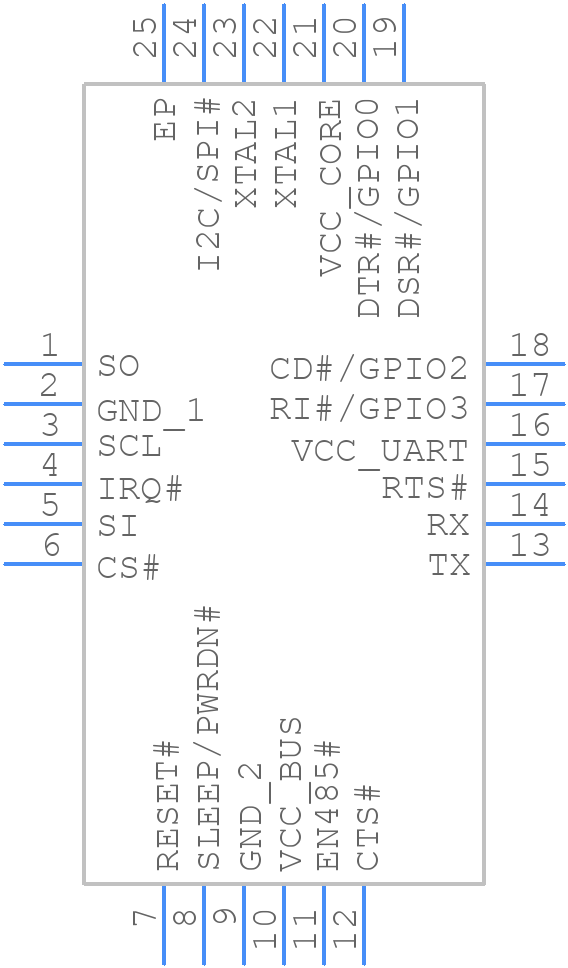

Symbol
XR20M1280IL24TR-F - MaxLinear, Inc. - PCB symbol
click to zoom
PCB Footprints
XR20M1280IL24TR-F - MaxLinear, Inc. PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-24_1
click to zoom
3D Models
XR20M1280IL24TR-F - MaxLinear, Inc. - 3D model - Quad Flat No-Lead - QFN-24_1
click to zoom

XR20M1280IL24TR-F Details

  • Manufacturer Part Number:

    XR20M1280IL24TR-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    MaxLinear Inc

  • YTEOL:

    5

  • Address Bus Width:

    2

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    24 MHz

  • Communication Protocol:

    I2C

  • Data Encoding/Decoding Method:

    NRZ

  • Data Transfer Rate-Max:

    3 MBps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

XR20M1280IL24TR-F Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SCL/SDA lines and a capacitor to filter out noise.
  • The XR20M1280IL24TR-F is rated for operation from -40°C to +85°C. However, it's recommended to derate the operating temperature range based on the specific application and environmental conditions.
  • Yes, the XR20M1280IL24TR-F is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and soldering techniques to ensure reliable operation.
  • Use a logic analyzer or oscilloscope to monitor the communication signals. Check the power supply voltage and ensure that it's within the specified range. Also, verify that the device is properly configured and initialized.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XR20M1280IL24TR-F Overview

Use the download button to access the XR20M1280IL24TR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR20M, or try a keyword search, such as Serial IO/Communication Controllers
