For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note AN-215. Ensure a solid ground plane, use thermal vias, and keep the device away from heat sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize power consumption, use the device's built-in power-saving features, such as the low-power mode and dynamic voltage scaling. Additionally, optimize the system's clock frequency, use a low-power oscillator, and minimize the number of active circuits.
Handle the device with anti-static wrist straps, mats, or bags. Use ESD-protected workstations and follow the JEDEC standard JESD625-A for ESD handling. Ensure the device is stored in its original packaging or an ESD-protected container.
Use the device's built-in diagnostic features, such as the built-in self-test (BIST) and loopback modes. Utilize oscilloscopes, logic analyzers, and signal generators to debug signal integrity issues. Consult the datasheet and application notes for troubleshooting guidelines.
Ensure proper heat dissipation by using thermal interfaces, such as thermal tape or thermal grease, between the device and the heat sink. Use a heat sink with a thermal resistance of ≤ 10°C/W and ensure good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR21B1421IL28-F Overview

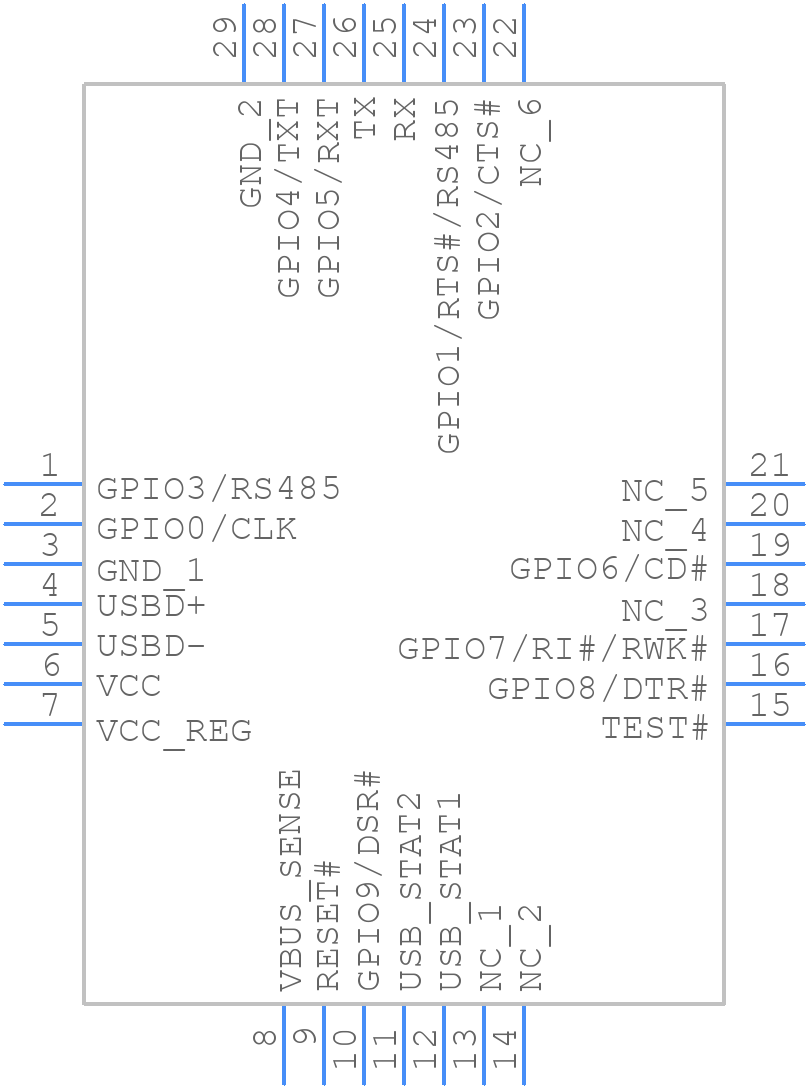

Use the download button to access the XR21B1421IL28-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR21B,
or try a keyword search, such as Serial IO/Communication Controllers
