A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode choke to filter the power supply.
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power supply decoupling, and place it as close to the device as possible. Ensure the power supply is clean and regulated, with minimal noise and ripple.
A high-quality, low-jitter clock source (e.g., a crystal oscillator or a high-precision clock generator) is recommended. Ensure the clock frequency is within the specified range (25MHz to 50MHz) and has minimal phase noise.
Use a high-quality, low-noise analog input signal, and ensure the input impedance is matched to the ADC input. Use a low-pass filter to remove high-frequency noise, and consider using a dedicated analog power supply to reduce digital noise coupling.
Use a heat sink or a thermal pad to dissipate heat, especially in high-power or high-temperature applications. Ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR34350IL Overview

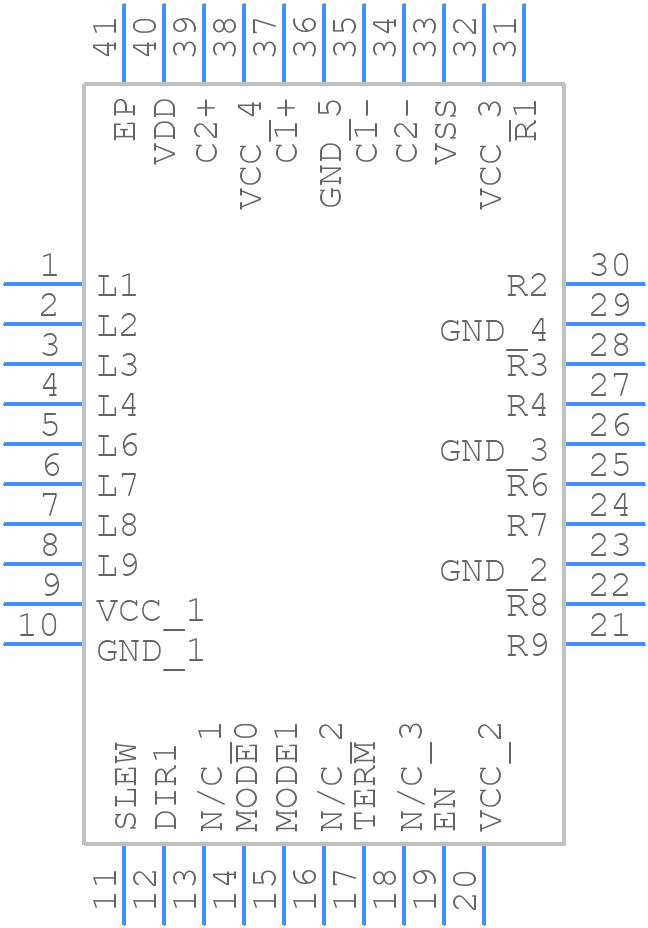

Use the download button to access the XR34350IL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR343,
or try a keyword search, such as Line Driver or Receivers
