MaxLinear provides a reference design guide and layout recommendations in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal management and signal integrity.
To minimize power consumption, ensure that the device is operated within the recommended voltage range, and use the power-down mode when not in use. Additionally, optimize the clock frequency and adjust the bias current to meet your specific application requirements.
The internal voltage regulators are optimized for typical operating conditions. However, you may need to adjust the regulator settings based on your specific application requirements. Consult the datasheet and application notes for guidance on regulator configuration and optimization.
To troubleshoot oscillations or instability, check the PCB layout, decoupling, and power supply quality. Ensure that the device is properly terminated, and the input/output signals are within the recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines and debugging techniques.
Handle the XRA1200IG16TR-F with care, as it is a sensitive electronic component. Follow standard ESD protection procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that the device is stored in an anti-static bag or container when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XRA1200IG16TR-F Overview

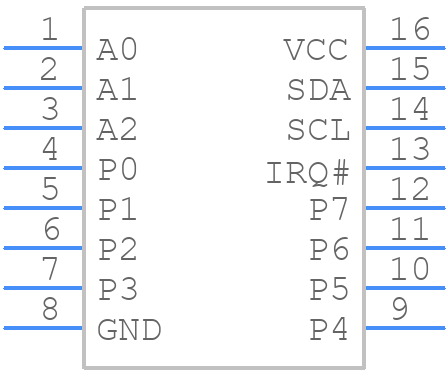

Use the download button to access the XRA1200IG16TR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XRA12,
or try a keyword search, such as Parallel IO Ports
