XRA1203IG24TR-F - MaxLinear, Inc.

Description: Interface - I/O Expanders 16 Bit I2C GPIO Expander

Download XRA1203IG24TR-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

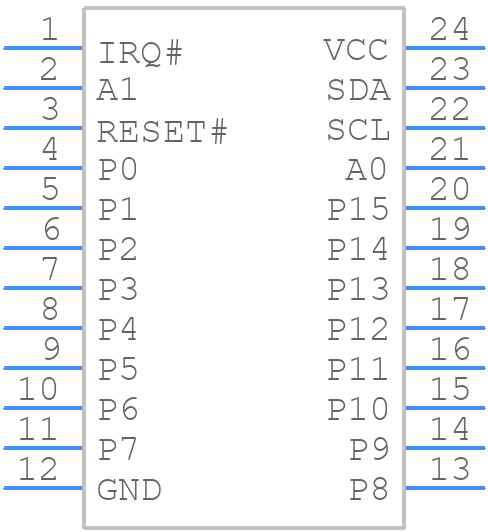

XRA1203IG24TR-F - MaxLinear, Inc. - PCB symbol
click to zoom
PCB Footprints
XRA1203IG24TR-F - MaxLinear, Inc. PCB footprint - Small Outline Packages - Small Outline Packages - 24 PIN TSSOP - 4.4 mm
click to zoom
3D Models
XRA1203IG24TR-F - MaxLinear, Inc. - 3D model - Small Outline Packages - 24 PIN TSSOP - 4.4 mm
click to zoom

XRA1203IG24TR-F Details

  • Manufacturer Part Number:

    XRA1203IG24TR-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    MaxLinear Inc

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

XRA1203IG24TR-F Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • Use a low-ESR capacitor (e.g., 100nF) between VCC and GND, and a 10uF capacitor between VCC and GND for bulk decoupling. Ensure the power supply is stable and has low ripple.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or 75 ohms, depending on the application.
  • The gain of the XRA1203IG24TR-F can be configured using external resistors. Consult the datasheet for the gain configuration table and follow the recommended resistor values for the desired gain setting.
  • The XRA1203IG24TR-F has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or a thermal land on the PCB. Use thermal interface material (TIM) if necessary.
