Technical Content
Part Image

XRCGE40M000FBA10R0 - Murata Electronics

Description: 2.0x1.6mm 40.0MHz Crystal Unit +/-15ppm Initial tolerance

Download XRCGE40M000FBA10R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

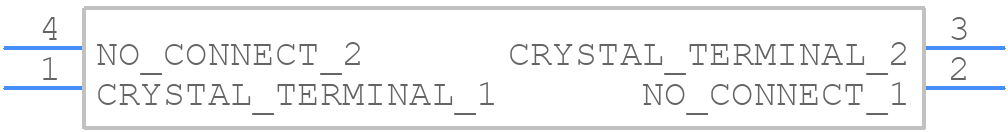

Symbol
XRCGE40M000FBA10R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
XRCGE40M000FBA10R0 - Murata Electronics PCB footprint - Other - Other - XRCGE40M000FBA10R0
click to zoom
3D Models
XRCGE40M000FBA10R0 - Murata Electronics - 3D model - Other - XRCGE40M000FBA10R0
click to zoom

XRCGE40M000FBA10R0 Details

  • Manufacturer Part Number:

    XRCGE40M000FBA10R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Aging:

    20 PPM/15 YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    300 µW

  • Frequency Stability:

    0.0045%

  • Frequency Tolerance:

    15 ppm

  • Load Capacitance:

    10 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    40 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    2.0mm X 1.6mm X 0.65mm

  • Series Resistance:

    60 Ω

  • Surface Mount:

    YES

XRCGE40M000FBA10R0 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the XRCGE40M000FBA10R0 can be found in the Murata Land Pattern Recommendation document (PDF) or by contacting Murata's technical support team.
  • The XRCGE40M000FBA10R0 is a moisture-sensitive device. Follow the recommended storage and handling procedures outlined in the IPC/JEDEC J-STD-033 standard to prevent damage.
  • The maximum allowable voltage derating for the XRCGE40M000FBA10R0 is typically 80% of the rated voltage. However, it's recommended to check with Murata's technical support or the component's datasheet for specific derating guidelines.
  • The XRCGE40M000FBA10R0 is rated for operation up to 125°C. However, it's essential to evaluate the component's performance and reliability in your specific application and temperature range. Consult with Murata's technical support team for guidance.
  • The recommended soldering profile for the XRCGE40M000FBA10R0 can be found in the Murata Soldering Profile Recommendation document (PDF) or by contacting Murata's technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XRCGE40M000FBA10R0 Overview

Use the download button to access the XRCGE40M000FBA10R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XRCGE, or try a keyword search, such as Quartz Crystals

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
