- Part Number XRD5412AID-F
- Manufacturer EXAR
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8 Pin NSOIC
- Released Date Nov 2, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XRD5412AID-F Details
-
Manufacturer Part Number:
XRD5412AID-F
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
0.150 INCH, GREEN, SOIC-8
-
Pin Count:
8
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Exar Corporation
-
YTEOL:
0
-
Analog Output Voltage-Max:
5.1 V
XRD5412AID-F Frequently Asked Questions (FAQs)
-
A good PCB layout for the XRD5412AID-F involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. It's also recommended to place decoupling capacitors close to the device and use a low-ESR capacitor for the VCC pin.
-
The XRD5412AID-F requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to ensure a clean power supply. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized to prevent latch-up or other issues.
-
The XRD5412AID-F can operate up to a maximum clock frequency of 100 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure optimal performance and minimize power consumption.
-
The XRD5412AID-F supports various data transfer modes, including SPI, I2C, and UART. To configure the device for a specific mode, you need to set the appropriate pins and registers according to the datasheet. For example, to configure the device for SPI mode, you need to set the CS pin low, set the SCK pin to the desired clock frequency, and configure the MOSI and MISO pins accordingly.
-
The XRD5412AID-F has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. Thermal management considerations include using a heat sink, ensuring good airflow, and minimizing power consumption to reduce heat generation.
Trust Checks
Community Provided
System Verified
Community Approved
XRD5412AID-F Overview

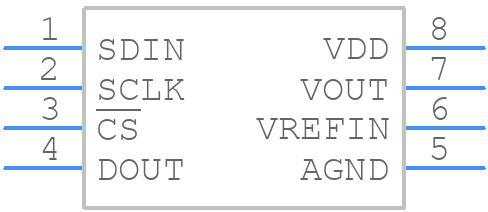

Use the download button to access the XRD5412AID-F schematic symbol, PCB footprint, and 3D model.
