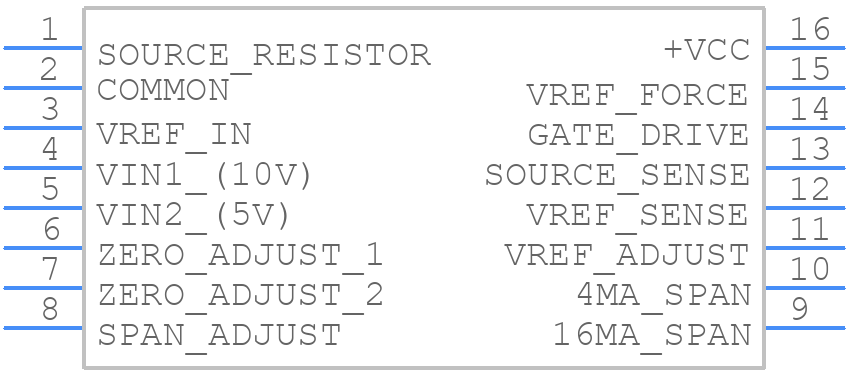

Symbol

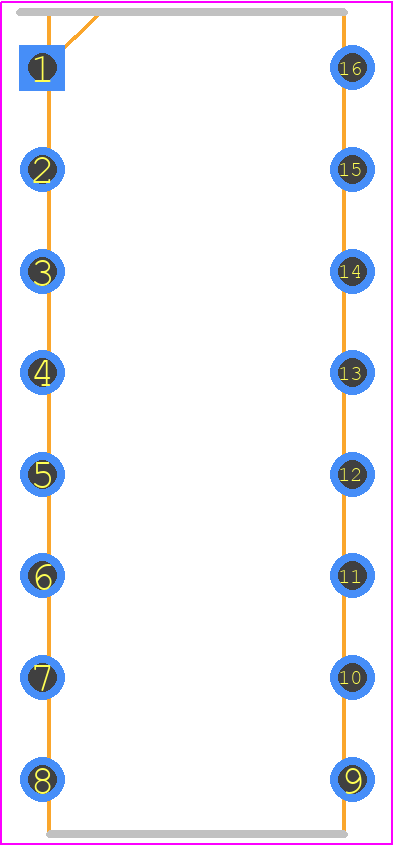

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XTR110AG
- Part Number XTR110AG
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - JD
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
XTR110AG Details
-
Manufacturer Part Number:
XTR110AG
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
XTR110AG Frequently Asked Questions (FAQs)
-
It's recommended to follow the layout guidelines provided in the datasheet, keeping the device away from high-current paths and noise sources. Place the device close to the signal source, and use a solid ground plane to minimize noise and EMI.
-
Ensure the input voltage is within the recommended range (4.5V to 5.5V), and the output voltage is set correctly (typically 2.5V or 3.3V). Also, ensure the bias resistors are correctly sized and placed to minimize noise and oscillations.
-
The XTR110AG can operate up to 100 MHz, but the maximum frequency of operation depends on the specific application, output load, and layout. It's recommended to consult the datasheet and application notes for specific guidance.
-
To minimize power consumption, ensure the input voltage is within the recommended range, and the output voltage is set correctly. Also, consider using a low-dropout regulator (LDO) or a switching regulator to reduce power consumption. For heat generation, ensure good thermal design, including a heat sink if necessary, and follow the recommended PCB layout guidelines.
-
To minimize EMI and noise, ensure good PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and placing the XTR110AG away from noise sources. Also, consider using shielding, filtering, and decoupling capacitors to reduce EMI and noise.
Trust Checks
Community Provided
System Verified
Community Approved
XTR110AG Overview
Use the download button to access the XTR110AG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
