XTR110KPG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - XTR110KPG4 . - Signal Conditioner, 13.5 V, 40 V, DIP, 16 Pins, -25 °C

Download XTR110KPG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

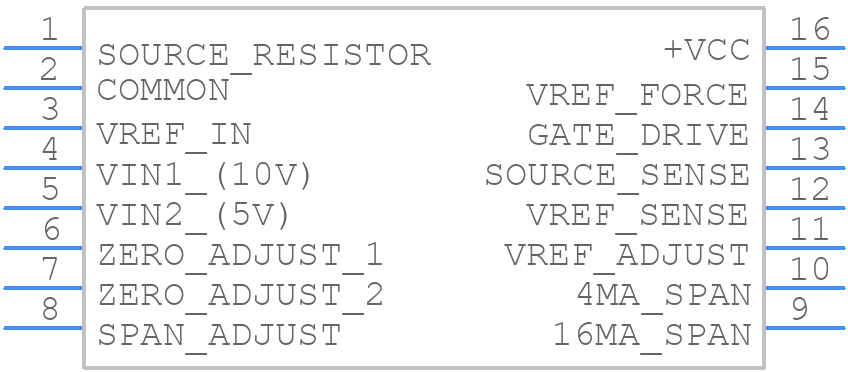

Symbol
XTR110KPG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR110KPG4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N(R-PDIP-T16)
click to zoom
3D Models
XTR110KPG4 - Texas Instruments - 3D model - Dual-In-Line Packages - N(R-PDIP-T16)
click to zoom

XTR110KPG4 Details

  • Manufacturer Part Number:

    XTR110KPG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

XTR110KPG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the XTR110KPG4 datasheet (section 10.1) and in the XTR110KPG4 Evaluation Module User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The XTR110KPG4 can be configured for a specific output frequency using the internal PLL and the external resistor network. Refer to the datasheet (section 8.3) for the calculation formula and the XTR110KPG4 Configuration Tool software for assistance.
  • The XTR110KPG4 has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 3.135V to 5.5V. Exceeding the maximum input voltage can damage the device.
  • To ensure a stable operating condition during power-up, it's recommended to follow a controlled power-up sequence, as described in the datasheet (section 9.2). This includes ramping up the input voltage slowly and ensuring the input voltage is stable before enabling the device.
  • The typical startup time for the XTR110KPG4 is around 10ms to 15ms, depending on the output frequency and the input voltage. This time can vary depending on the specific application and configuration.
