Texas Instruments provides a recommended PCB layout in the XTR114U datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing noise coupling.
To ensure accurate voltage measurement, it's crucial to use a high-impedance input source, minimize input capacitance, and avoid noise injection. Additionally, consider using a voltage reference IC, such as the REF3020, to provide a stable reference voltage.
Although the datasheet specifies a maximum input voltage of 36V, it's recommended to limit the input voltage to 30V to ensure reliable operation and prevent damage to the device.
For high-accuracy applications, it's essential to calibrate the XTR114U using an external calibration resistor and to use a high-precision voltage reference. Additionally, consider using a temperature compensation circuit to minimize temperature-related errors.
The typical settling time for the XTR114U is around 10-15 microseconds, but this can vary depending on the input signal frequency, amplitude, and output load. It's essential to consider the settling time when designing the system to ensure accurate measurements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XTR114U Overview

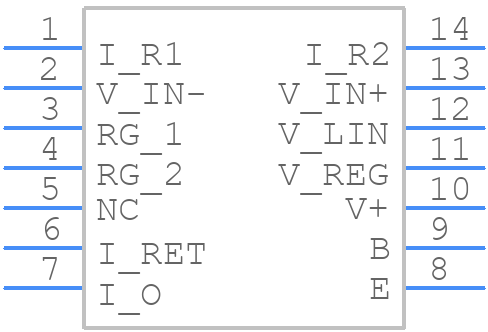

Use the download button to access the XTR114U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
