XTR116UA - Texas Instruments

Description: IC,4-20mA current loop,4.1Vref, XTR116UA XTR116UA 4 ???????? 20 mA Current Loop Transmitter 5V 8-Pin SOIC%0

Download XTR116UA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

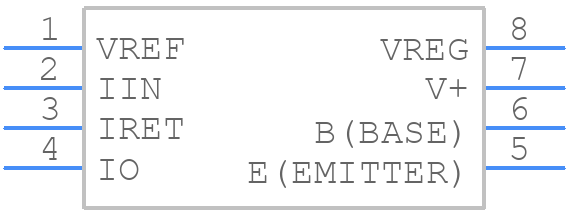

XTR116UA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR116UA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
XTR116UA - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

XTR116UA Details

  • Manufacturer Part Number:

    XTR116UA

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    7.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

XTR116UA Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the input signal. This ensures proper internal biasing and prevents latch-up.
  • To ensure accurate voltage regulation, it's essential to decouple the input and output pins with suitable capacitors, and to use a stable voltage reference (VREF) that is within the recommended range.
  • The maximum allowed input voltage for the XTR116UA is 36V, but it's recommended to operate within the specified input voltage range (12V to 24V) for optimal performance and reliability.
  • While the XTR116UA is rated for operation up to 125°C, it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating, which can affect performance and reliability.
  • To troubleshoot issues, start by verifying the input voltage, decoupling, and output loading. Check for proper PCB layout, component selection, and thermal management. Consult the datasheet and application notes for guidance on troubleshooting and optimization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XTR116UA Overview

Use the download button to access the XTR116UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR11, or try a keyword search, such as Other Signal Circuits
