XTR117AIDRBR - Texas Instruments

Description: Sensor Interface XTR117 4-20mA Crnt Loop Transmitter

Download XTR117AIDRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

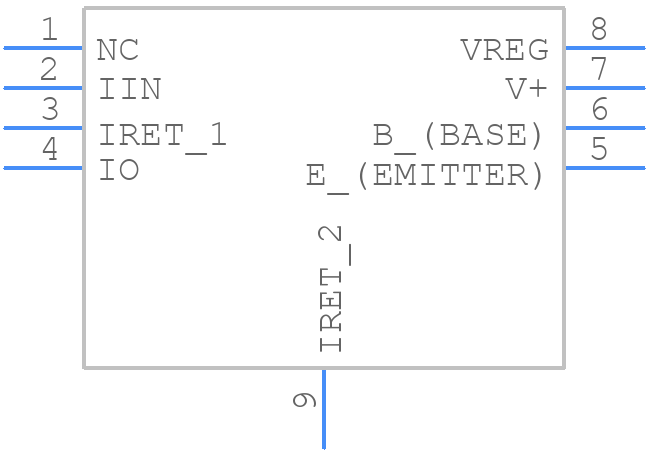

Symbol
XTR117AIDRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR117AIDRBR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B
click to zoom
3D Models
XTR117AIDRBR - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B
click to zoom

XTR117AIDRBR Details

  • Manufacturer Part Number:

    XTR117AIDRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    LCC8(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    7.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

XTR117AIDRBR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND for decoupling.
  • Use a thermocouple with a high-accuracy calibration, ensure good thermal contact between the thermocouple and the measured object, and use a cold junction compensation (CJC) sensor if possible. Also, consider using a thermocouple with a built-in CJC sensor.
  • The maximum cable length depends on the thermocouple type and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) and use shielded cables to minimize noise pickup.
  • Use a shielded enclosure, keep the XTR117AIDRBR away from high-frequency sources, and use EMI filters or ferrite beads on the power and signal lines. Ensure good grounding and use a common-mode choke if necessary.
  • Power up the VCC pin first, followed by the AVCC pin. Ensure that the power supply is stable and within the recommended voltage range before applying power to the XTR117AIDRBR.
