- Part Number XZFMDK05A
- Manufacturer SunLED
- Pin Count 10
- Part Category Display
- Package Category Other
- Footprint Name Other - XZFBBA05A
- Released Date Sep 1, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XZFMDK05A Details
-
Manufacturer Part Number:
XZFMDK05A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
SunLED Group
-
YTEOL:
6
-
Additional Feature:
IC COMPATIBLE
-
Color:
RED
-
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
XZFMDK05A Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the XZFMDK05A is -40°C to 85°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
-
The maximum forward current rating for the XZFMDK05A is 30mA. Exceeding this rating may cause damage to the component.
-
Handle the XZFMDK05A by the body, avoiding touching the leads or electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
-
Store the XZFMDK05A in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is 5°C to 30°C, with a relative humidity of 60% or less.
Trust Checks
Expert Contribution
System Verified
Community Approved
XZFMDK05A Overview

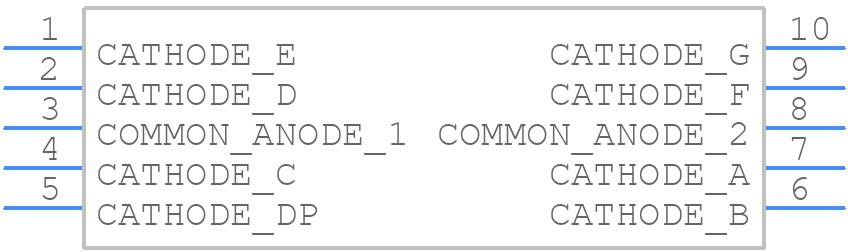

Use the download button to access the XZFMDK05A schematic symbol, PCB footprint, and 3D model.
