The thermal resistance of the Y14870R02000B9R is not explicitly stated in the datasheet, but it can be estimated to be around 250-300°C/W, based on similar resistors from Vishay.
While the Y14870R02000B9R is a high-precision resistor, it's not specifically designed for high-frequency applications. However, it can be used up to a few hundred kHz without significant degradation. For higher frequencies, consider using a resistor specifically designed for high-frequency use.
To ensure optimal reliability, handle the Y14870R02000B9R by the body, avoiding touching the leads or resistor element. Use anti-static wrist straps and mats, and store the resistors in their original packaging to prevent damage.
The Y14870R02000B9R is rated for operation up to 155°C. While it can tolerate short-term excursions above this temperature, prolonged exposure may affect its performance and lifespan. Consult the datasheet and application notes for specific guidance.
Use a soldering iron with a temperature of 250-270°C, and apply a small amount of solder to the leads. Avoid overheating, as this can damage the resistor. Use a solder with a melting point above 180°C to ensure reliable joints.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
Y14870R02000B9R Overview

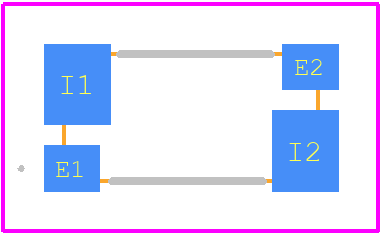

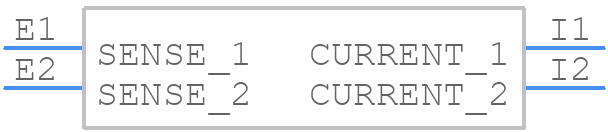

Use the download button to access the Y14870R02000B9R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Y1487,
or try a keyword search, such as Metal Foil Resistors
