- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for YAT-15A+
- Part Number YAT-15A+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630
- Released Date Aug 2, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
YAT-15A+ Details
-
Manufacturer Part Number:
YAT-15A+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Attenuation-Nom:
14.97 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
31.46 dBm
-
JESD-609 Code:
e3
YAT-15A+ Frequently Asked Questions (FAQs)
-
A good grounding scheme is crucial for the YAT-15A+. It's recommended to use a solid ground plane, and to connect the device's ground pins to the ground plane using vias. The input and output tracks should be kept short and away from other noisy signals. A 4-layer PCB with a dedicated ground plane is recommended.
-
The YAT-15A+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system. You can also use a transmission line calculator to design a matching network.
-
The YAT-15A+ can handle up to 1W of input power. Exceeding this power may cause damage to the device. It's recommended to use an attenuator or a limiter to prevent over-powering the device.
-
The YAT-15A+ requires a positive bias voltage of 12-15V and a current of 100-150mA. A voltage regulator and a current limiting resistor can be used to bias the device. It's recommended to use a low-noise voltage regulator to minimize noise injection.
-
The YAT-15A+ can operate from -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 50°C for optimal performance.
Trust Checks
System Verified
YAT-15A+ Overview

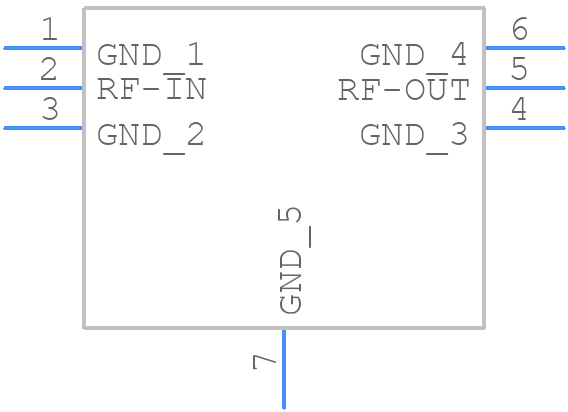

Use the download button to access the YAT-15A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YAT-1,
or try a keyword search, such as RF/Microwave Attenuators
