- Part Number YAT-20A+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Attenuator or Isolator
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630
- Released Date Sep 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
YAT-20A+ Details
-
Manufacturer Part Number:
YAT-20A+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Attenuation-Nom:
20.05 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
29.03 dBm
-
JESD-609 Code:
e3
YAT-20A+ Frequently Asked Questions (FAQs)
-
A good grounding scheme is crucial for the YAT-20A+. It's recommended to use a solid ground plane, and to connect the amplifier's ground pin to the ground plane using a low-impedance path. Additionally, keep the input and output traces as short as possible and use a microstrip or coplanar waveguide topology to minimize radiation losses.
-
The YAT-20A+ requires a bias voltage of +12V to +15V and a bias current of 120mA to 150mA. Ensure the power supply is stable and can provide the required current. Also, use a voltage regulator to regulate the bias voltage and add decoupling capacitors to filter out noise.
-
The YAT-20A+ can handle input powers up to +10dBm. Exceeding this limit may cause compression, distortion, or even damage to the amplifier. Ensure the input power is within the recommended range to maintain optimal performance.
-
The YAT-20A+ is a broadband amplifier, but its performance can be optimized for specific frequency ranges by using external matching networks or tuning the input/output impedance. Use simulation tools or consult with a RF engineer to design an optimal matching network for your specific application.
-
The YAT-20A+ is specified to operate from -40°C to +85°C. However, the amplifier's performance may degrade at extreme temperatures. Ensure the operating temperature is within the recommended range to maintain optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
YAT-20A+ Overview

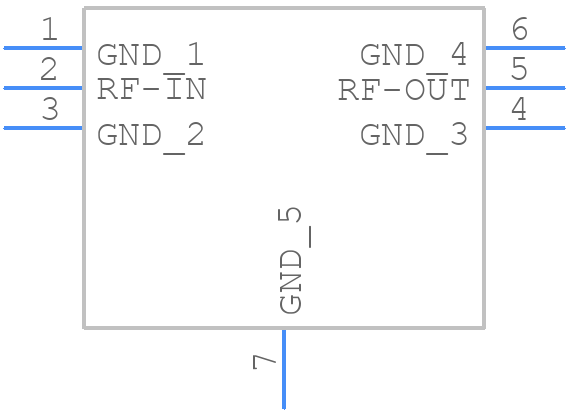

Use the download button to access the YAT-20A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YAT-2,
or try a keyword search, such as RF/Microwave Attenuators
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
