- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for YAT-3+
- Part Number YAT-3+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Attenuator or Isolator
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630
- Released Date Nov 15, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
YAT-3+ Details
-
Manufacturer Part Number:
YAT-3+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
2 X 2 MM, ROHS COMPLIANT, MINIATURE, CASE MC1630, MCLP, 6 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
0
-
Attenuation-Nom:
3.51 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
33.01 dBm
YAT-3+ Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, a signal layer on the top layer, and power planes on the inner layers. This layout helps to minimize noise and ensure optimal performance.
-
Proper thermal management is crucial for the YAT-3+. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
-
The YAT-3+ is designed to work with 50 ohm input and output impedance. Ensure that your circuit is designed to match this impedance for optimal performance and to minimize reflections.
-
Yes, the YAT-3+ can be used in a push-pull configuration. However, it's essential to ensure that the two devices are properly matched and biased to avoid uneven current distribution and potential oscillations.
-
The maximum safe operating temperature for the YAT-3+ is 85°C. Operating the device above this temperature can reduce its reliability and lifespan.
Trust Checks
Expert Contribution
System Verified
Community Approved
YAT-3+ Overview

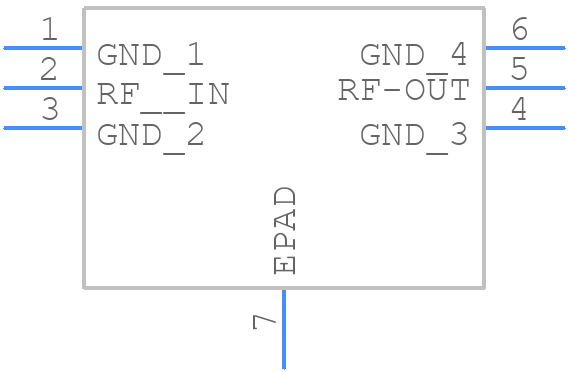

Use the download button to access the YAT-3+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YAT-3,
or try a keyword search, such as RF/Microwave Attenuators
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
